Flexiable diffuser
See Detail

Tel: +86 760 22313838 / 22316868

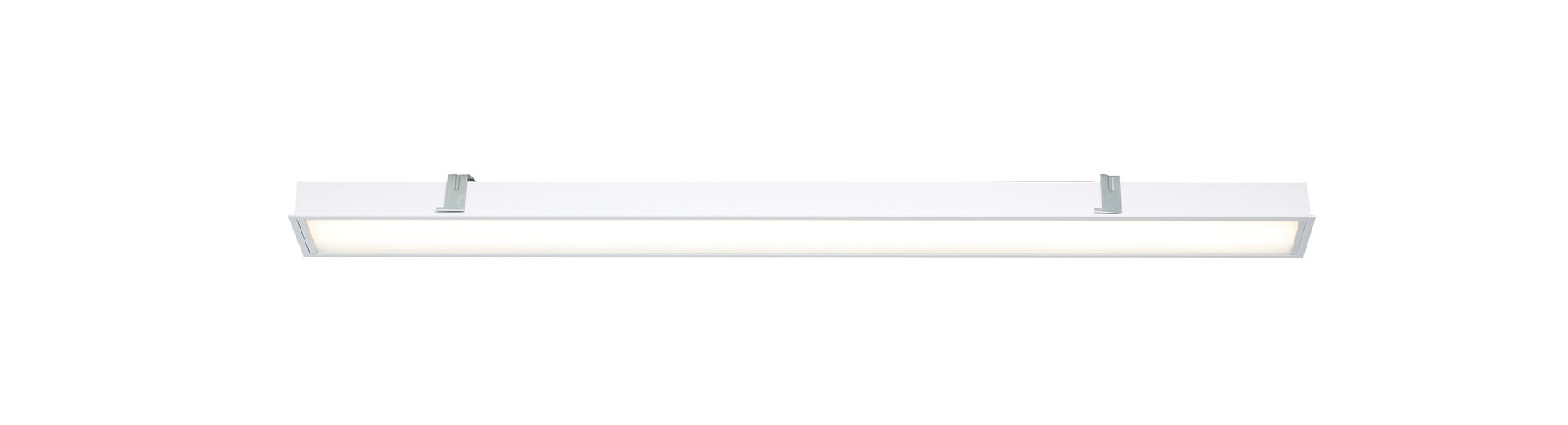

Flexiable diffuser
PH-FD-07911-RLX
Light Distribution:

Single Sided Lighting

Size:

1143*79*40

Beam Angle:

99°

Previous Page

PH-FD-07911-RLX
Size: 1143*79*40
Specification
  • Input Voltage: 220-240V
  • Input Power: 30W
  • Light Source: SAMSUNG 2835 0.2W
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.966
  • Lm/W: 84
  • Color:
  • Power Efficiency: 88.0%
  • Luminous Flux: 2480
  • Lnsulation Class: CLASS Ⅱ
  • Output Voltage: DC 27-54V
  • UGR: <19.0
  • (G.W. / N.W.): 1.94/2.3kg
  • Output Current: DC 700mA±5%
  • Beam Angle: 99°
  • Package Dimensions: 133*12.5*9cm
  • Lifespan: 30000H
  • Diffuser material: PC
Photometric Results
Aluminum specifications
Stitching method

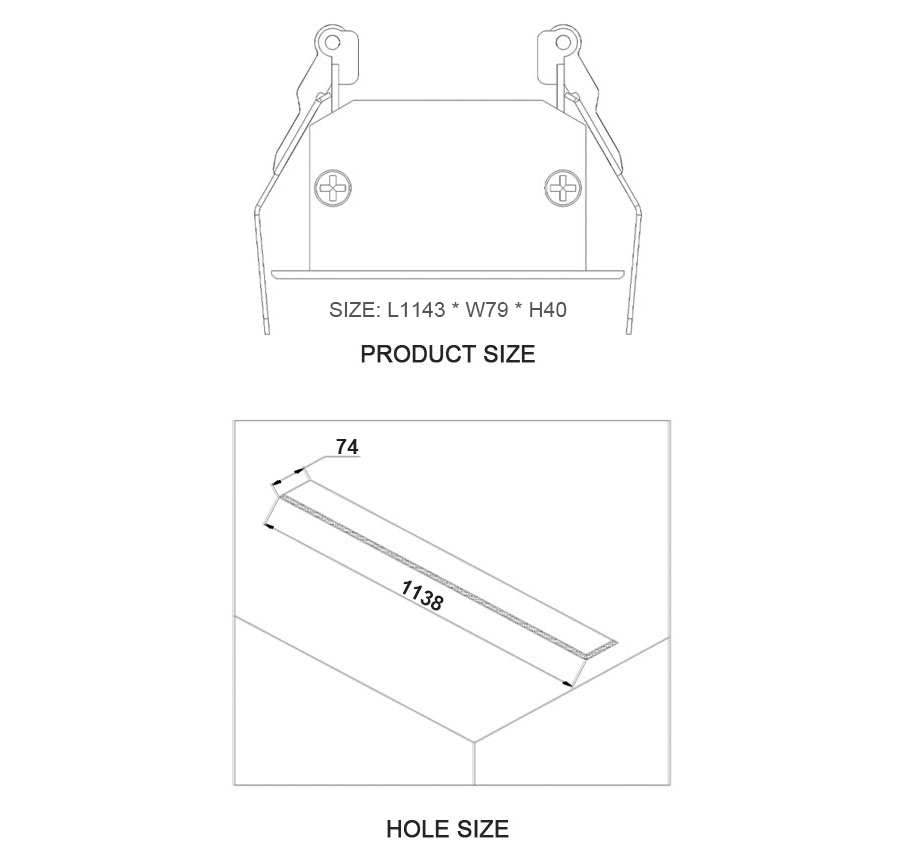

Installation method
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
583mm 15w 84 99° 1240 Ra>80
863mm 22w 84 99° 1817 Ra>80
1143mm 30w 84 99° 2480 Ra>80
1423mm 38w 84 99° 3138 Ra>80
1703mm 45w 84 99° 3717 Ra>80
1983mm 52w 84 99° 4295 Ra>80
2263mm 60w 84 99° 4950 Ra>80
Different Power
Size Input Power Luminous Flux
L1143*W79*H45mm 20w 1652
30w 2480
40w 3304
Download All
Design Concept

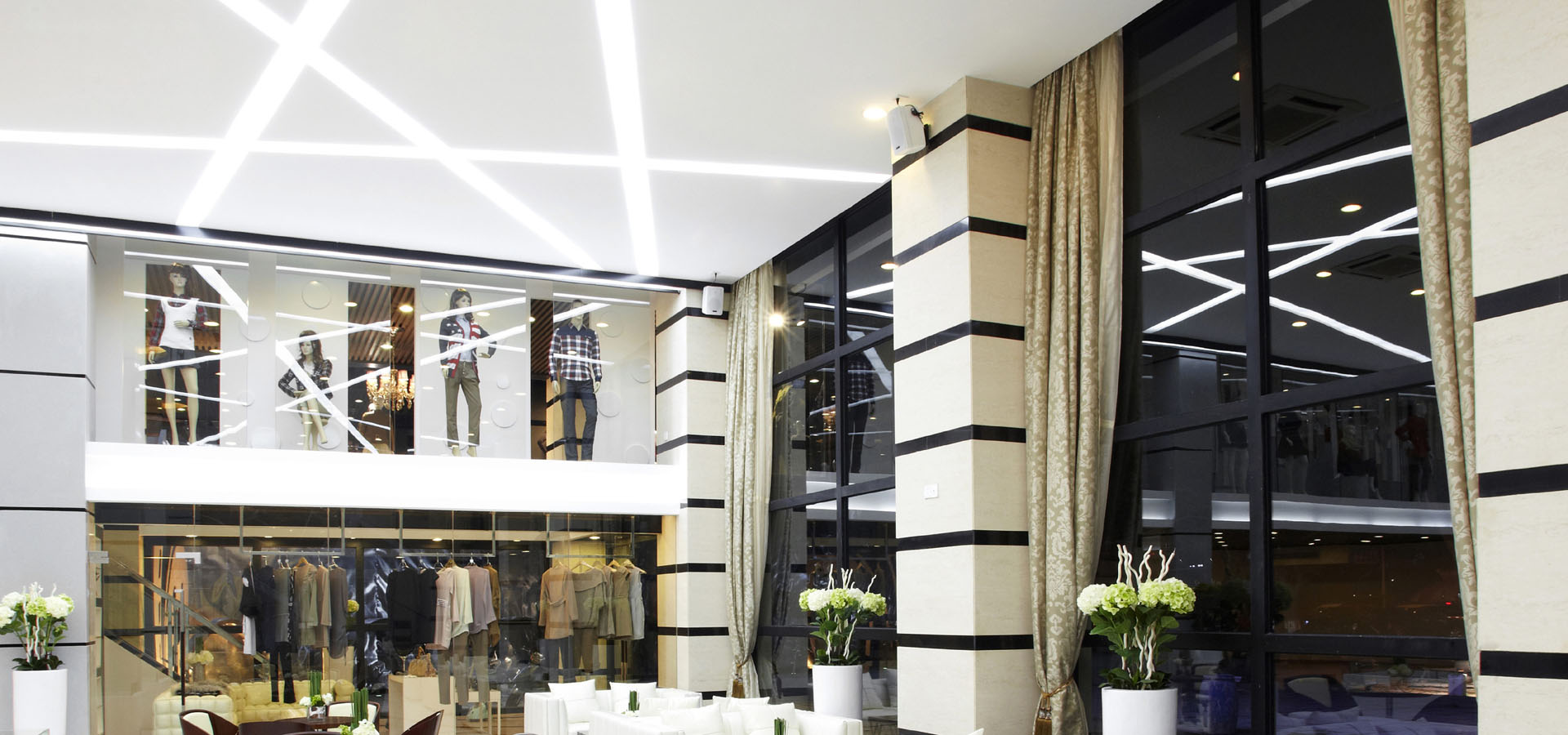

Application
