PH-FD-06212-SL - Flexiable diffuser

Flexiable diffuser

PH-FD-06212-SL

Light Distribution:

Double Sided Lighting

Size:

1136*62*82

Beam Angle:

Indirect: 107° Direct: 100°

PH-FD-06212-SL

Size: 1136*62*82

Specification

Input Voltage: 220-240V
Input Power: 45W
Light Source: SAMSUNG 2835
Freqency Range: 50/60Hz
Ra: Ra>80
CCT: 3000/4000/6000K
Power Factor: 0.97
Lm/W: Indirect: 110 Direct: 86.5
Color:
Power Efficiency: 87.0%
Luminous Flux: Indirect: 1553 Direct: 2500
Lnsulation Class: CLASS I
Output Voltage: DC 27-54V
UGR: ＜19.0
(G.W. / N.W.): 3.2/3.7kg
Output Current: DC 1050mA±5%
Beam Angle: Indirect: 107° Direct: 100°
Package Dimensions: 123*10.5*13.5cm
Lifespan: 30000H
Diffuser material: PC

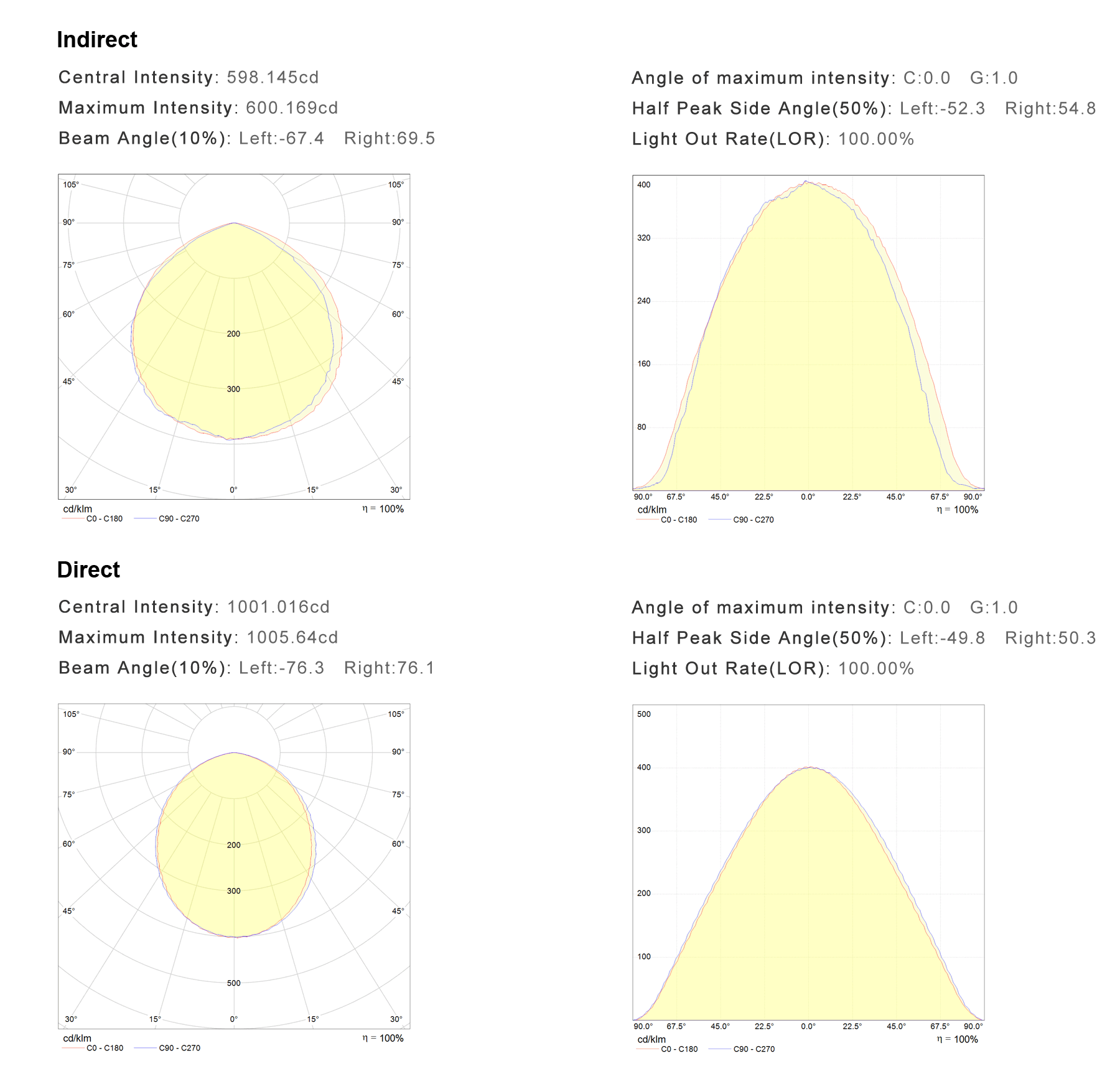

Photometric Results

Aluminum specifications

Stitching method

Composite signal

Different Size

Size	Input Power	Lm/W	Beam Angle	Luminous Flux	Ra
576mm	22w	Indirect: 110 Direct: 86.5	100°	Indirect: 725 Direct: 1249	Ra>80
856mm	32w	Indirect: 110 Direct: 86.5	100°	Indirect: 1035 Direct: 1833	Ra>80
1136mm	45w	Indirect: 110 Direct: 86.5	100°	Indirect: 1553 Direct: 2500	Ra>80
1416mm	57w	Indirect: 110 Direct: 86.5	100°	Indirect: 1966 Direct: 3166	Ra>80
1696mm	67w	Indirect: 110 Direct: 86.5	100°	Indirect: 2277 Direct: 3749	Ra>80
1976mm	78w	Indirect: 110 Direct: 86.5	100°	Indirect: 2691 Direct: 4333	Ra>80
2256mm	90w	Indirect: 110 Direct: 86.5	100°	Indirect: 3105 Direct: 4999	Ra>80

Different Power

Size	Input Power	Luminous Flux
L1136W62H82mm	38w	Indirect: 1242 Direct: 1666
	45w	Indirect: 1553 Direct: 2500
	52w	Indirect: 1863 Direct: 3333

Download All

Design Concept

Application

The simple and fashionable black,white and gray color design can fully match the requirements of the color of the lamps in different scenes, and the black and white color contrast design of the lamp end cover makes the whole lamp more attractive to the uuser's eye, highlighting itself in simplicity personality.
