Flexiable diffuser
PH-FD-06211-SL
Light Distribution:

Single Sided Lighting

Size:

1136*62*82

Beam Angle:

100°

PH-FD-06211-SL
Size: 1136*62*82
Specification
  • Input Voltage: 220-240V
  • Input Power: 30W
  • Light Source: SAMSUNG 2835
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.97
  • Lm/W: 86.5
  • Color:
  • Power Efficiency: 87.0%
  • Luminous Flux: 2500
  • Lnsulation Class: CLASS I
  • Output Voltage: DC 27-54V
  • UGR: <19.0
  • (G.W. / N.W.): 3.2/3.7kg
  • Output Current: DC 700mA±5%
  • Beam Angle: 100°
  • Package Dimensions: 123*10.5*13.5cm
  • Lifespan: 30000H
  • Diffuser material: PC

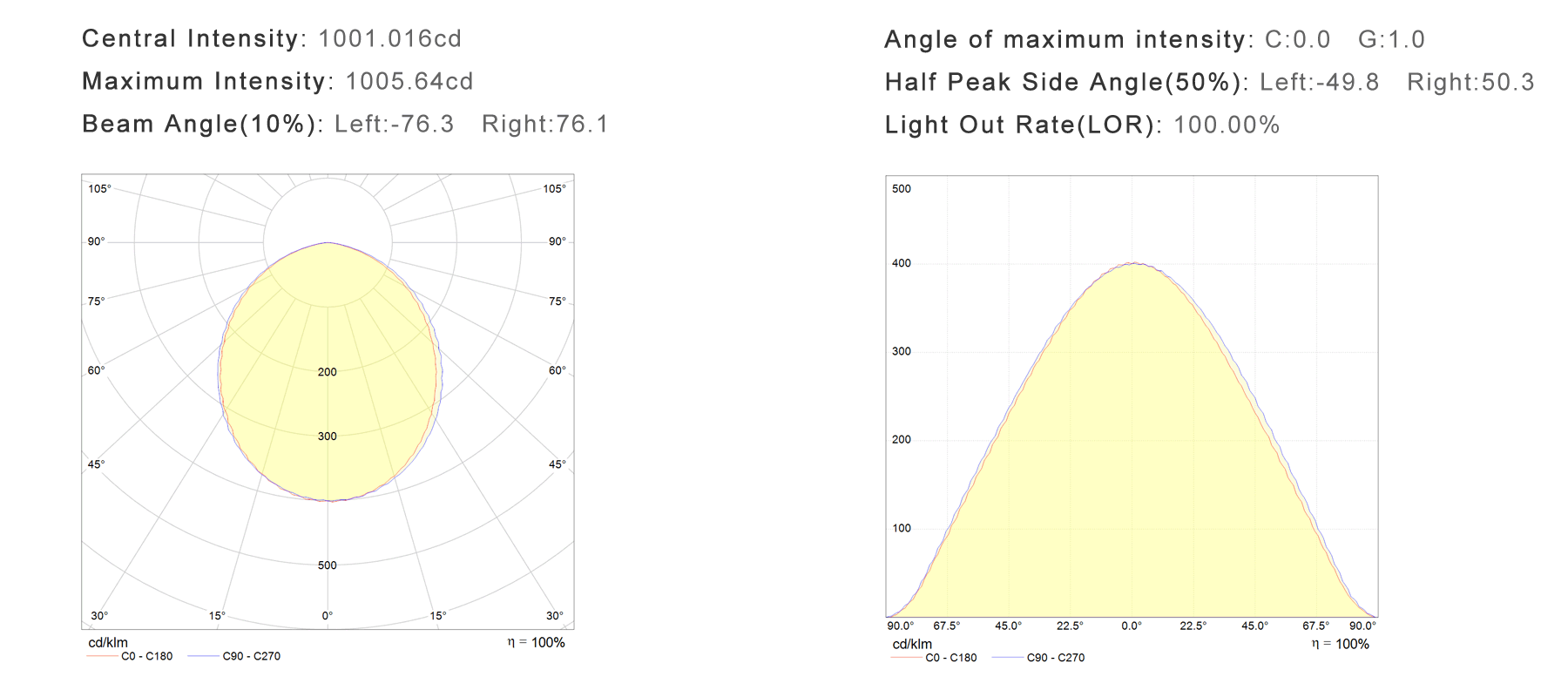

Photometric Results
Aluminum specifications
Stitching method
Composite signal
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
576mm 15w 86.5 100° 1249 Ra>80
856mm 22w 86.5 100° 1833 Ra>80
1136mm 30w 86.5 100° 2500 Ra>80
1416mm 38w 86.5 100° 3166 Ra>80
1696mm 45w 86.5 100° 3749 Ra>80
1976mm 52w 86.5 100° 4333 Ra>80
2256mm 60w 86.5 100° 4999 Ra>80
Different Power
Size Input Power Luminous Flux
L1136*W62*H82mm 20w 1667
30w 2500
40w 3320
