Flexiable diffuser
See Detail

Tel: +86 760 22313838 / 22316868

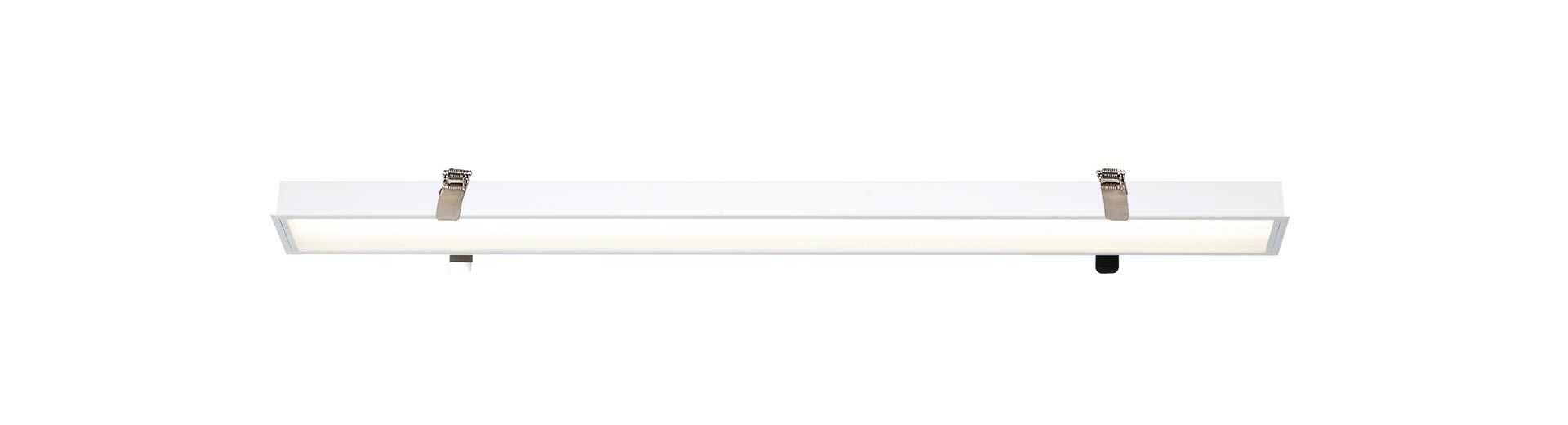

Flexiable diffuser
PH-FD-07721-RLT
Light Distribution:

Single Sided Lighting

Size:

1143*78*54

Beam Angle:

91.2°

Previous Page

PH-FD-07721-RLT
Size: 1143*78*54
Specification
  • Input Voltage: 220-240V
  • Input Power: 30W
  • Light Source: SAMSUNG 2835 0.2W
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.966
  • Lm/W: 91
  • Color:
  • Power Efficiency: 88.0%
  • Luminous Flux: 2460
  • Lnsulation Class: CLASS Ⅱ
  • Output Voltage: DC 27-54V
  • UGR: < 18.0
  • (G.W. / N.W.): 2.3/2.8kg
  • Output Current: DC 700mA±5%
  • Beam Angle: 91.2°
  • Package Dimensions: 133*12.5*11.5cm
  • Lifespan: 30000H
  • Diffuser material: PC
Photometric Results
Aluminum specifications
Stitching method
Installation method
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
583mm 15w 91 91.2° 1230 Ra>80
863mm 22w 91 91.2° 1804 Ra>80
1143mm 30w 91 91.2° 2460 Ra>80
1423mm 38w 91 91.2° 3116 Ra>80
1703mm 45w 91 91.2° 3690 Ra>80
1983mm 52w 91 91.2° 4264 Ra>80
2263mm 60w 91 91.2° 4920 Ra>80
Different Power
Size Input Power Luminous Flux
L1143*W78*H54mm 20w 1640
30w 2460
40w 3280
Download All
