Lens
PH-LN-06231-SL
Light Distribution:

Single Sided Lighting

Size:

1143*62*82

Beam Angle:

47.7°

Previous Page

PH-LN-06231-SL
Size: 1143*62*82
Specification
  • Input Voltage: 220-240V
  • Input Power: 30W
  • Light Source: SAMSUNG 2835
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.968
  • Lm/W: 145
  • Color:
  • Power Efficiency: 87.0%
  • Luminous Flux: 3811
  • Lnsulation Class: CLASS I
  • Output Voltage: DC 27-54V
  • UGR: ＜19.0
  • (G.W. / N.W.): 3.2/3.7kg
  • Output Current: DC 700mA±5%
  • Beam Angle: 47.7°
  • Package Dimensions: 123*10.5*13.5cm
  • Lifespan: 30000H

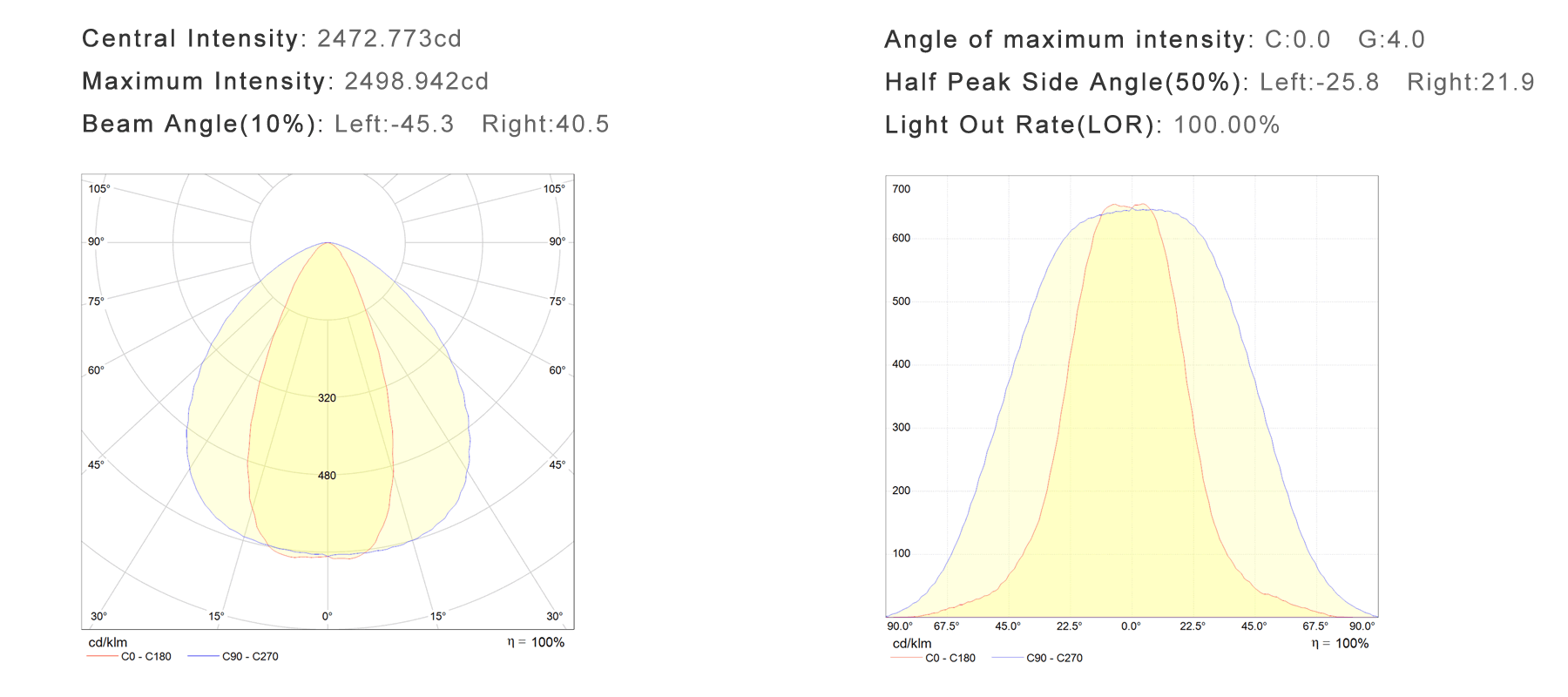

Photometric Results
Aluminum specifications
Stitching method
Composite signal
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
581mm 15w 145 47.7° 1905 Ra>80
861mm 22w 145 47.7° 2795 Ra>80
1141mm 30w 145 47.7° 3811 Ra>80
1421mm 38w 145 47.7° 4826 Ra>80
1701mm 45w 145 47.7° 5715 Ra>80
1981mm 52w 145 47.7° 6604 Ra>80
2261mm 60w 145 47.7° 7620 Ra>80
Different Power
Size Input Power Luminous Flux
L1136*W62*H82mm 20w 2540
30w 3811
40w 5080
Download All
Design Concept
Application
Product Video
