Lens
PH-LN-06212-SL
Light Distribution:

Double Sided Lighting

Size:

1136*62*82

Beam Angle:

Indirect: 107° Direct: 20°

PH-LN-06212-SL
Size: 1136*62*82
Specification
  • Input Voltage: 220-240V
  • Input Power: 45W
  • Light Source: SAMSUNG 2835
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.968
  • Lm/W: Indirect: 110 Direct: 110
  • Color:
  • Power Efficiency: 87.0%
  • Luminous Flux: Indirect: 1451 Direct: 3079
  • Lnsulation Class: CLASS I
  • Output Voltage: DC 27-54V
  • UGR: < 18.0
  • (G.W. / N.W.): 3.2/3.7kg
  • Output Current: DC 1050mA±5%
  • Beam Angle: Indirect: 107° Direct: 20°
  • Package Dimensions: 123*10.5*13.5cm
  • Lifespan: 30000H

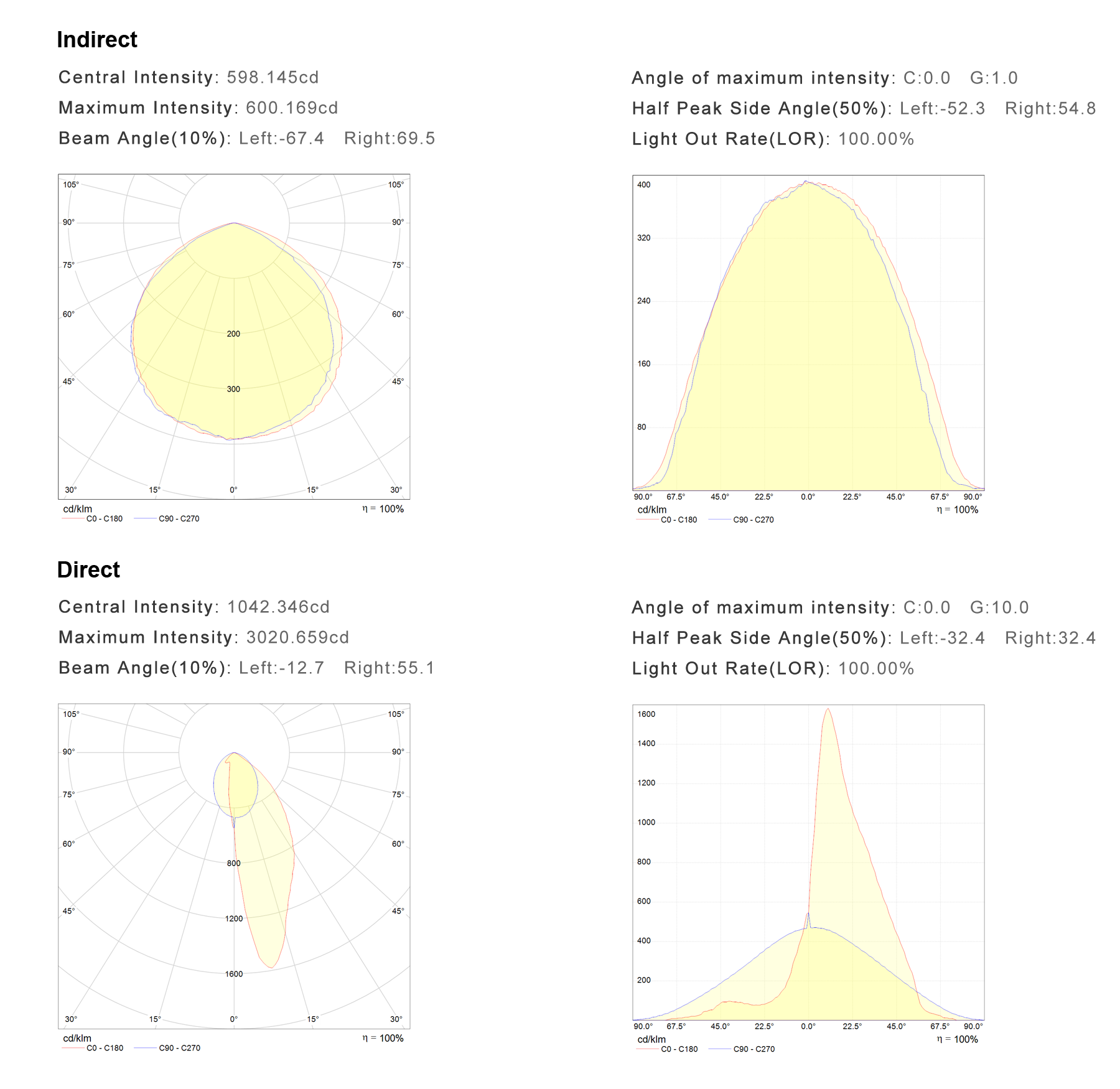

Photometric Results
Aluminum specifications
Stitching method
Composite signal
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
576mm 22w Indirect: 110 Direct: 110 20° Indirect: 679 Direct: 1539 Ra>80
856mm 32w Indirect: 110 Direct: 110 20° Indirect: 1067 Direct: 2258 Ra>80
1136mm 45w Indirect: 110 Direct: 110 20° Indirect: 1451 Direct: 3079 Ra>80
1416mm 57w Indirect: 110 Direct: 110 20° Indirect: 1843 Direct: 3899 Ra>80
1696mm 67w Indirect: 110 Direct: 110 20° Indirect: 2143 Direct: 4618 Ra>80
1976mm 78w Indirect: 110 Direct: 110 20° Indirect: 2522 Direct: 5523 Ra>80
2256mm 90w Indirect: 110 Direct: 110 20° Indirect: 2910 Direct: 6158 Ra>80
Different Power
Size Input Power Luminous Flux
L1136*W62*H82mm 38w Indirect: 1160 Direct: 2668
45w Indirect: 1451 Direct: 3079
52w Indirect: 1741 Direct: 3490
Design Concept
Application
