Lens
PH-LN-06211-SL
Light Distribution:

Single Sided Lighting

Size:

1136*62*82

Beam Angle:

20°

Previous Page

PH-LN-06211-SL
Size: 1136*62*82
Specification
  • Input Voltage: 220-240V
  • Input Power: 30W
  • Light Source: SAMSUNG 2835
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.968
  • Lm/W: 110
  • Color:
  • Power Efficiency: 87.0%
  • Luminous Flux: 3079
  • Lnsulation Class: CLASS I
  • Output Voltage: DC 27-54V
  • UGR: ＜ 18.0
  • (G.W. / N.W.): 3.2/3.7kg
  • Output Current: DC 700mA±5%
  • Beam Angle: 20°
  • Package Dimensions: 123*10.5*13.5cm
  • Lifespan: 30000H

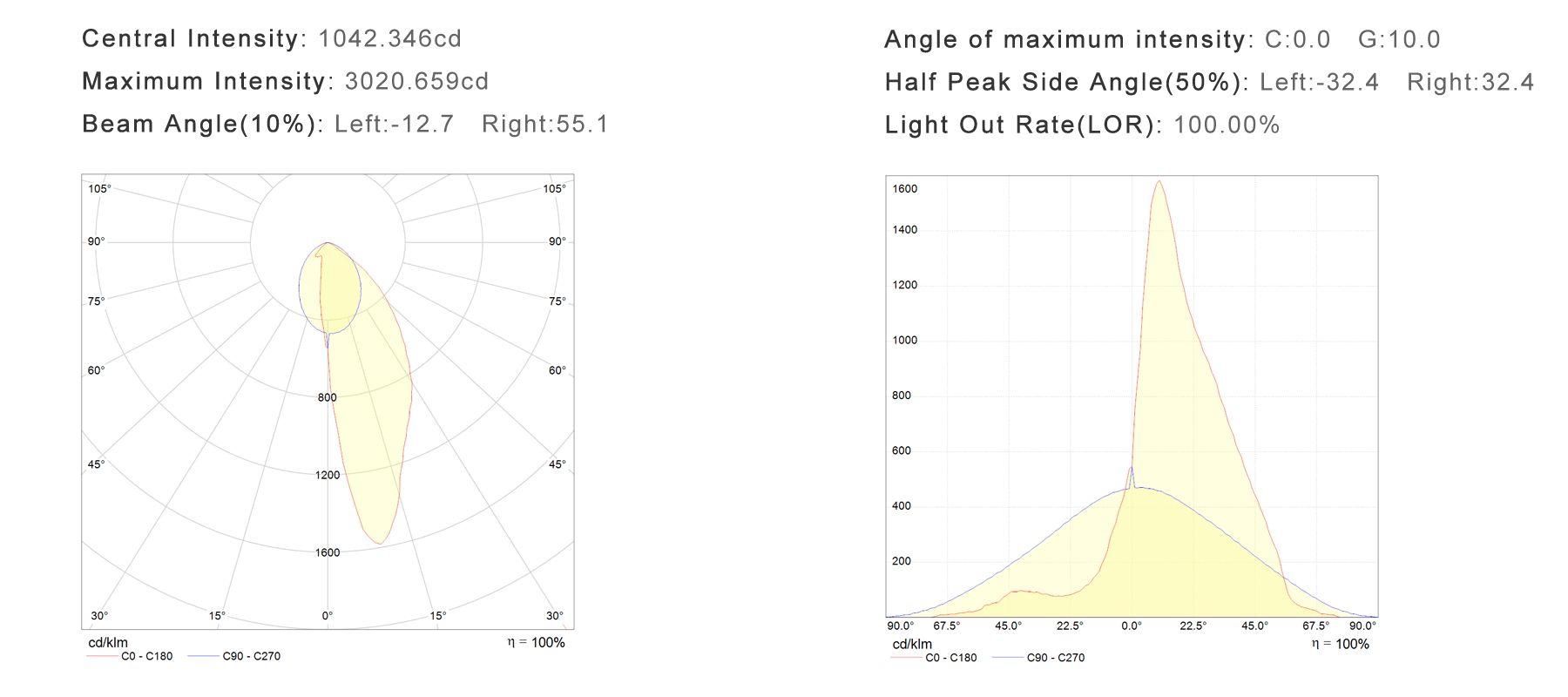

Photometric Results
Aluminum specifications
Stitching method
Composite signal
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
576mm 15w 110 20° 1539 Ra>80
856mm 22w 110 20° 2258 Ra>80
1136mm 30w 110 20° 3079 Ra>80
1416mm 38w 110 20° 3899 Ra>80
1696mm 45w 110 20° 4618 Ra>80
1976mm 52w 110 20° 5523 Ra>80
2256mm 60w 110 20° 6158 Ra>80
Different Power
Size Input Power Luminous Flux
L1136*W62*H82mm 20w 2052
30w 3079
40w 4105
Download All
