Lens
PH-LN-06222-SL
Light Distribution:

Double Sided Lighting

Size:

1136*62*82

Beam Angle:

Indirect: 107° Direct: 73.7°

PH-LN-06222-SL
Size: 1136*62*82
Specification
  • Input Voltage: 220-240V
  • Input Power: 45W
  • Light Source: SAMSUNG 2835
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.968
  • Lm/W: Indirect: 110 Direct: 110
  • Color:
  • Power Efficiency: 87.0%
  • Luminous Flux: Indirect: 1451 Direct: 3079
  • Lnsulation Class: CLASS I
  • Output Voltage: DC 27-54V
  • UGR: <19.0
  • (G.W. / N.W.): 3.2/3.7kg
  • Output Current: DC 1050mA±5%
  • Beam Angle: Indirect: 107° Direct: 73.7°
  • Package Dimensions: 123*10.5*13.5cm
  • Lifespan: 30000H

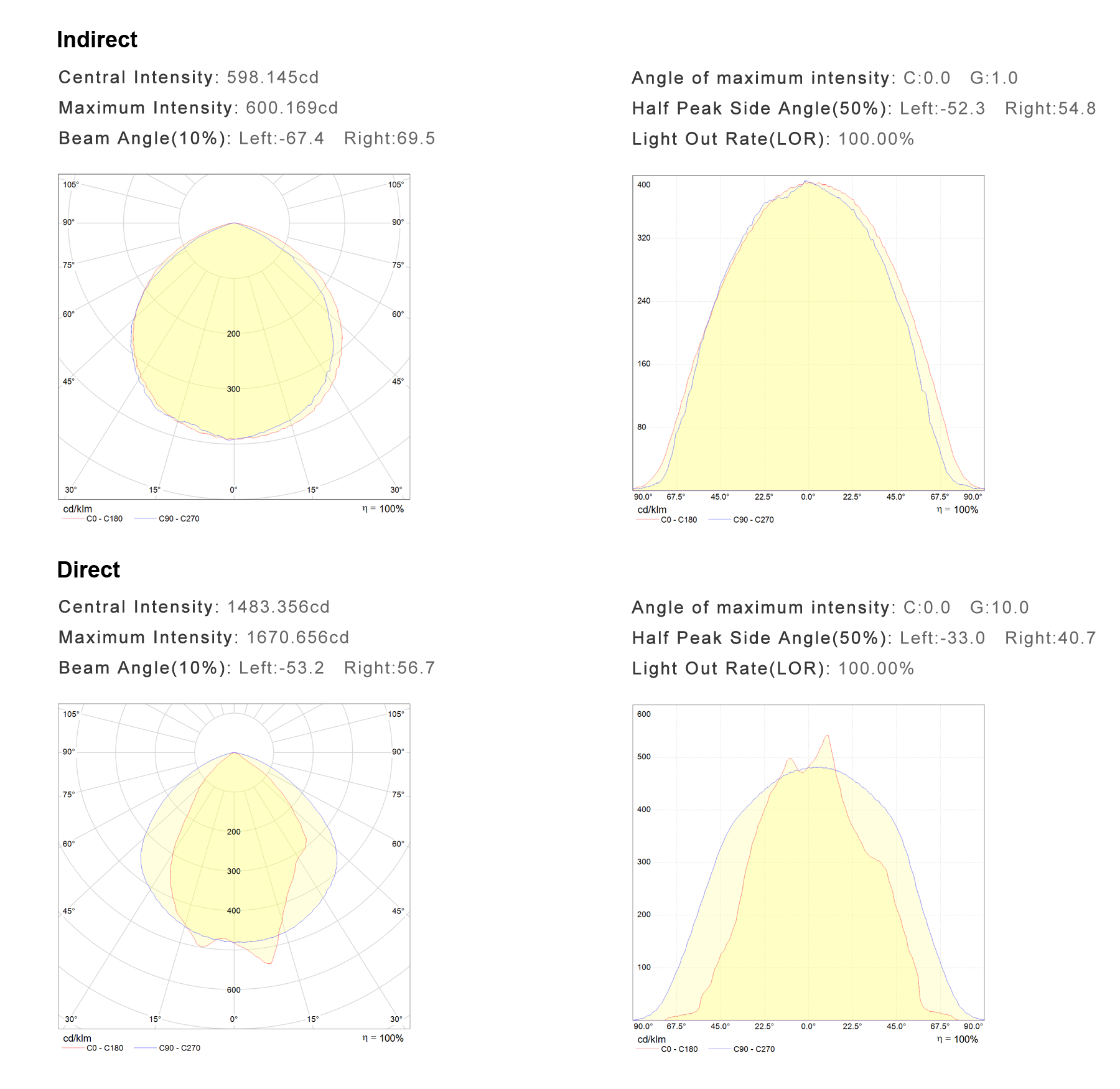

Photometric Results
Aluminum specifications
Stitching method
Composite signal
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
576mm 22w Indirect: 110 Direct: 110 62° Indirect: 679 Direct: 1539 Ra>80
856mm 32w Indirect: 110 Direct: 110 62° Indirect: 1067 Direct: 2258 Ra>80
1136mm 45w Indirect: 110 Direct: 110 62° Indirect: 1451 Direct: 3079 Ra>80
1416mm 57w Indirect: 110 Direct: 110 62° Indirect: 1843 Direct: 3899 Ra>80
1696mm 67w Indirect: 110 Direct: 110 62° Indirect: 2134 Direct: 4618 Ra>80
1976mm 78w Indirect: 110 Direct: 110 62° Indirect: 2522 Direct: 5523 Ra>80
2256mm 90w Indirect: 110 Direct: 110 62° Indirect: 2910 Direct: 6158 Ra>80
Different Power
Size Input Power Luminous Flux
L1136*W62*H82mm 38w Indirect: 1160 Direct: 2668
45w Indirect: 1451 Direct: 3079
52w Indirect: 1741 Direct: 3490
Design Concept
Application
The simple and fashionable black,white and gray color design can fully match the requirements of the color of the lamps in different scenes, and the black and white color contrast design of the lamp end cover makes the whole lamp more attractive to the uuser's eye, highlighting itself in simplicity personality.
