Lens
PH-LN-07881-SL
Light Distribution:

Single Sided Lighting

Size:

1142*78*102

Beam Angle:

77°

Previous Page

PH-LN-07881-SL
Size: 1142*78*102
Specification
  • Input Voltage: 220-240V
  • Input Power: 30W
  • Light Source: SAMSUNG 2835
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.97
  • Lm/W: 87.7
  • Color:
  • Power Efficiency: 88.0%
  • Luminous Flux: 2456
  • Lnsulation Class: CLASS I
  • Output Voltage: DC 27-54V
  • UGR: <18.0
  • (G.W. / N.W.): 3.8/4.3kg
  • Output Current: DC 700mA±5%
  • Beam Angle: 77°
  • Package Dimensions: 123*12*15.5cm
  • Lifespan: 30000H

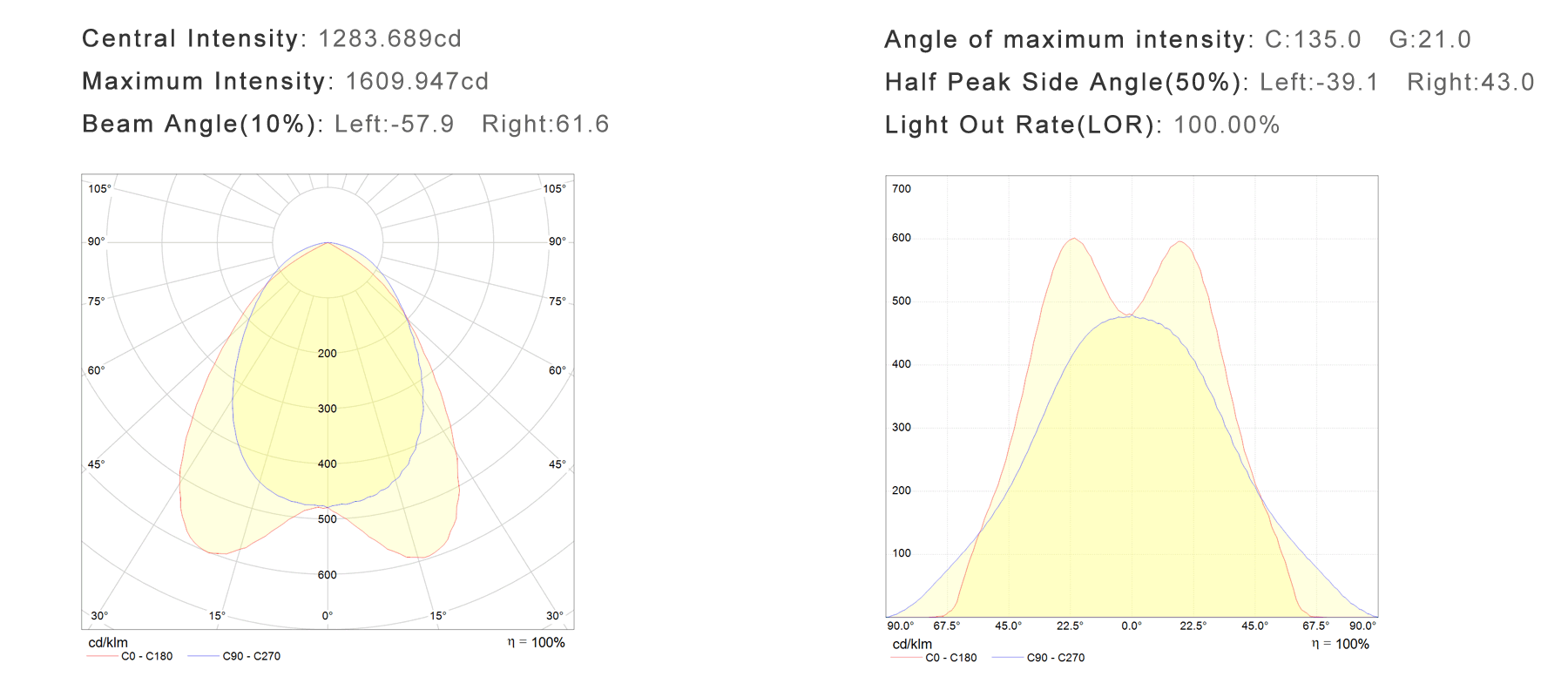

Photometric Results
Aluminum specifications
Stitching method
Composite signal
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
582mm 15w 87.7 77° 1228 Ra>80
1142mm 30w 87.7 77° 2456 Ra>80
1702mm 45w 87.7 77° 3684 Ra>80
2262mm 60w 87.7 77° 4912 Ra>80
Different Power
Size Input Power Luminous Flux
L1142*W78*H102mm 20w 1637
30w 2456
40w 3274
Download All
Design Concept
Application
Product Video
