Lens
PH-LN-06242-SL
Light Distribution:

Double Sided Lighting

Size:

1143*62*82

Beam Angle:

Indirect: 107° Direct: 63.4°

PH-LN-06242-SL
Size: 1143*62*82
Specification
  • Input Voltage: 220-240V
  • Input Power: 45W
  • Light Source: SAMSUNG 2835
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.968
  • Lm/W: Indirect: 110 Direct: 139
  • Color:
  • Power Efficiency: 87.0%
  • Luminous Flux: Indirect: 1451 Direct: 3647
  • Lnsulation Class: CLASS I
  • Output Voltage: DC 27-54V
  • UGR: <19.0
  • (G.W. / N.W.): 3.2/3.7kg
  • Output Current: DC 1050mA±5%
  • Beam Angle: Indirect: 107° Direct: 63.4°
  • Package Dimensions: 123*10.5*13.5cm
  • Lifespan: 30000H

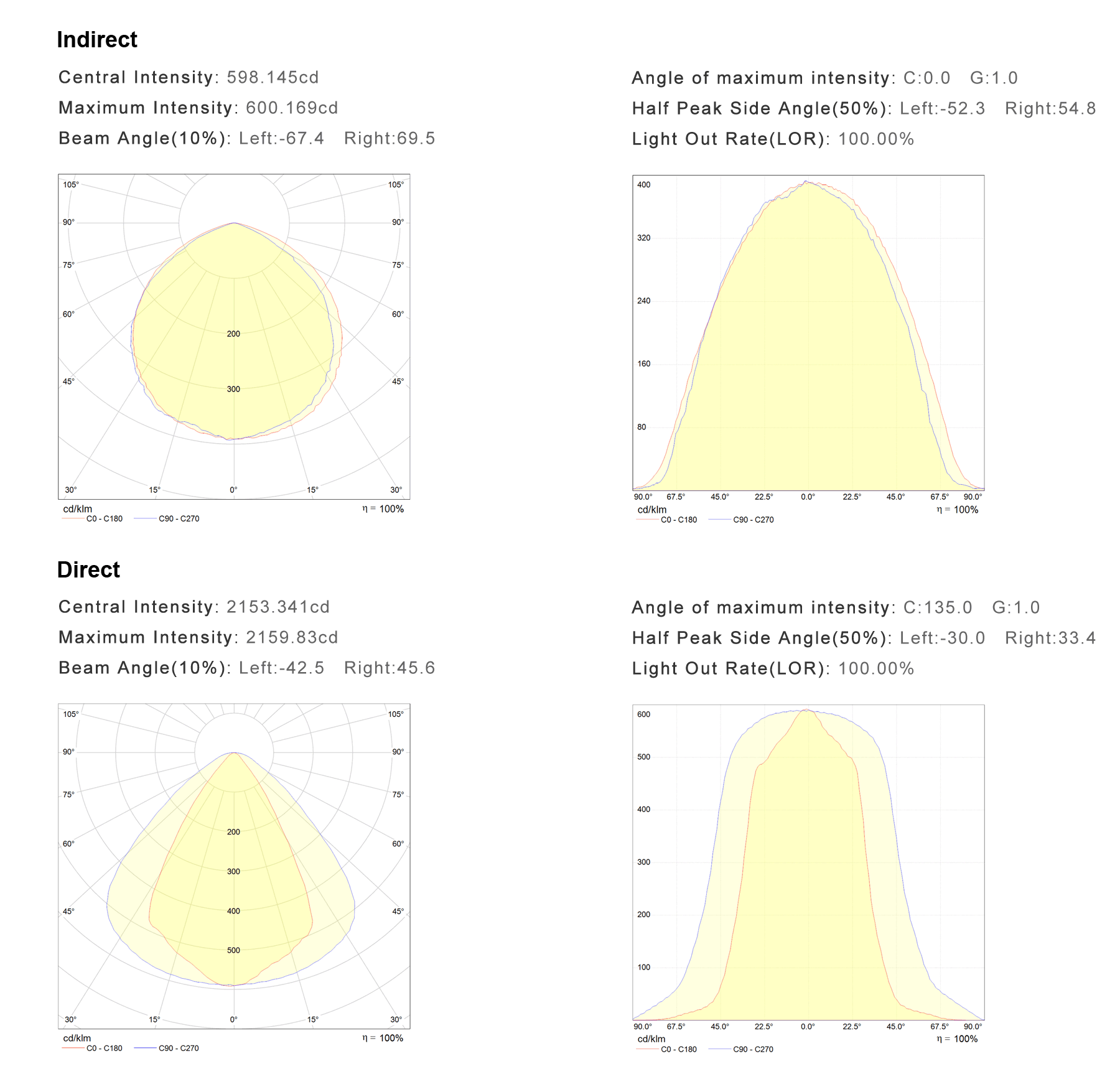

Photometric Results
Aluminum specifications
Stitching method
Composite signal
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
581mm 22w Indirect: 110 Direct: 139 63.4° Indirect: 679 Direct: 1822 Ra>80
861mm 32w Indirect: 110 Direct: 139 63.4° Indirect: 1067 Direct: 2673 Ra>80
1141mm 45w Indirect: 110 Direct: 139 63.4° Indirect: 1451 Direct: 3647 Ra>80
1421mm 57w Indirect: 110 Direct: 139 63.4° Indirect: 1843 Direct: 4617 Ra>80
1701mm 67w Indirect: 110 Direct: 139 63.4° Indirect: 2134 Direct: 5467 Ra>80
1981mm 78w Indirect: 110 Direct: 139 63.4° Indirect: 2522 Direct: 6318 Ra>80
2261mm 90w Indirect: 110 Direct: 139 63.4° Indirect: 2910 Direct: 7290 Ra>80
Different Power
Size Input Power Luminous Flux
L1136*W62*H82mm 38w Indirect: 1120 Direct: 3159
45w Indirect: 1400 Direct: 3647
52w Indirect: 1680 Direct: 4131
Design Concept

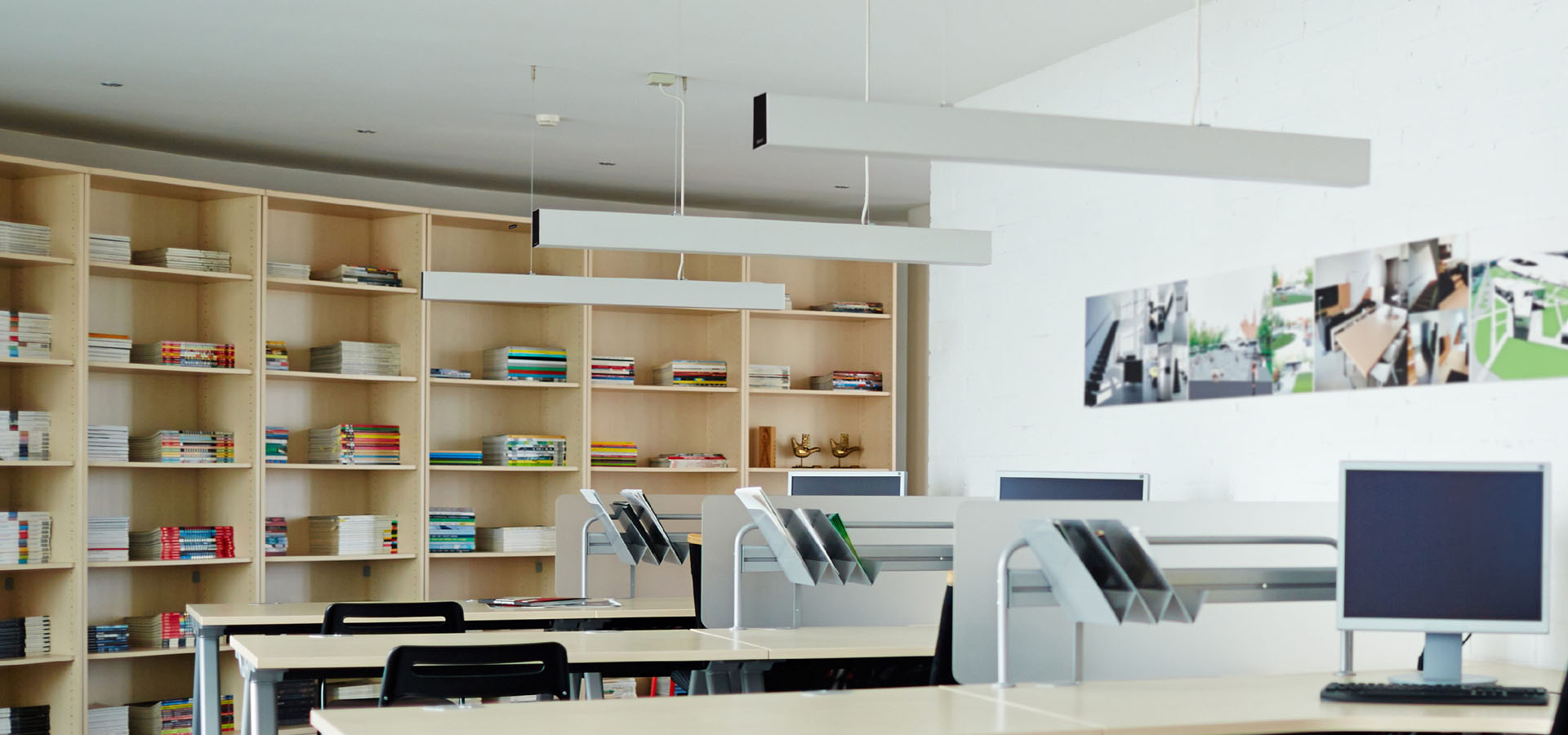

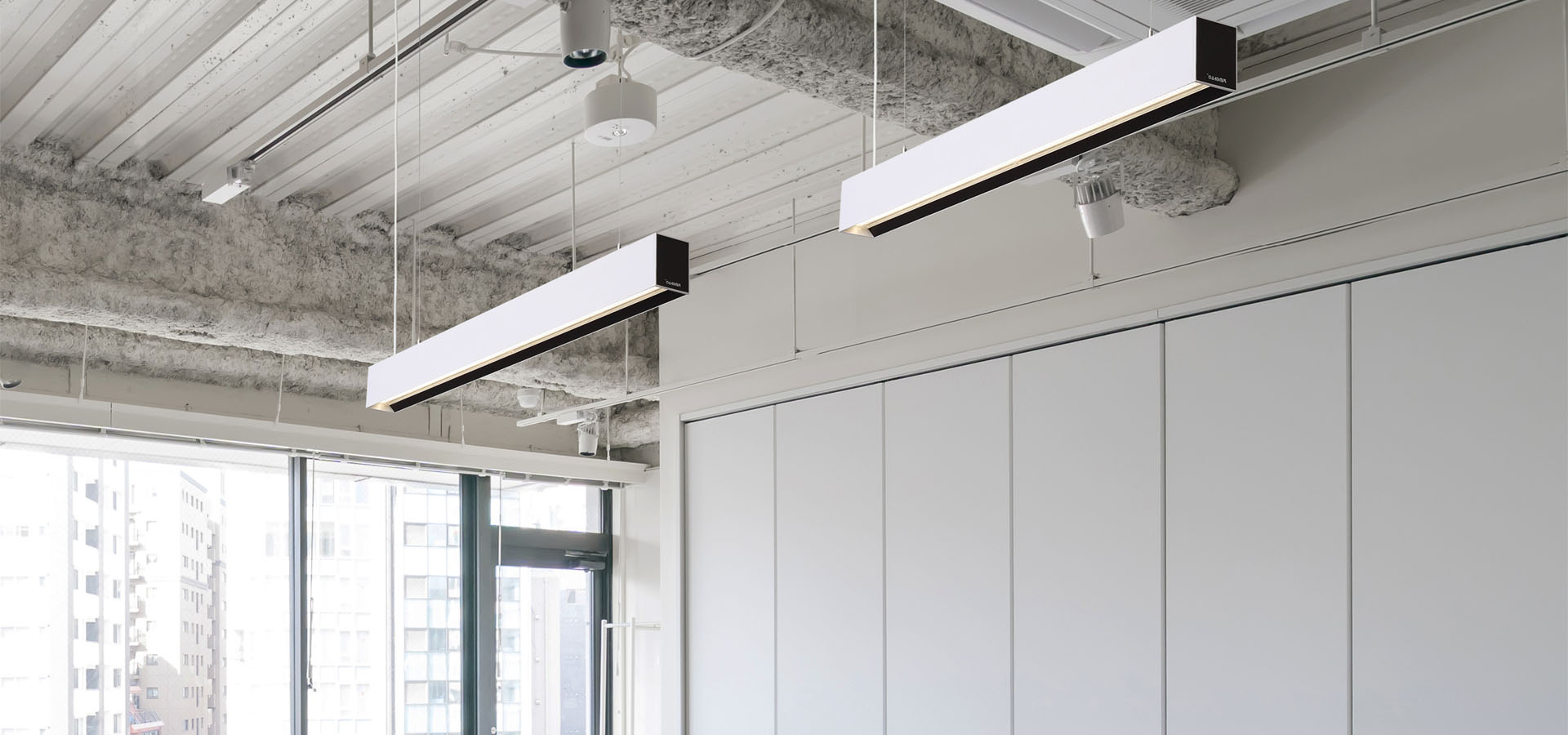

Application
