Lens

PH-LN-06232-SL

Light Distribution:

Double Sided Lighting

Size:

1143*62*82

Beam Angle:

Indirect: 107° Direct: 47.7°

PH-LN-06232-SL

Size: 1143*62*82

Specification

Input Voltage: 220-240V
Input Power: 45W
Light Source: SAMSUNG 2835
Freqency Range: 50/60Hz
Ra: Ra>80
CCT: 3000/4000/6000K
Power Factor: 0.968
Lm/W: Indirect: 110 Direct: 145
Color:
Power Efficiency: 87.0%
Luminous Flux: Indirect: 1451 Direct: 3811
Lnsulation Class: CLASS I
Output Voltage: DC 27-54V
UGR: ＜19.0
(G.W. / N.W.): 3.2/3.7kg
Output Current: DC 1050mA±5%
Beam Angle: Indirect: 107° Direct: 47.7°
Package Dimensions: 123*10.5*13.5cm
Lifespan: 30000H

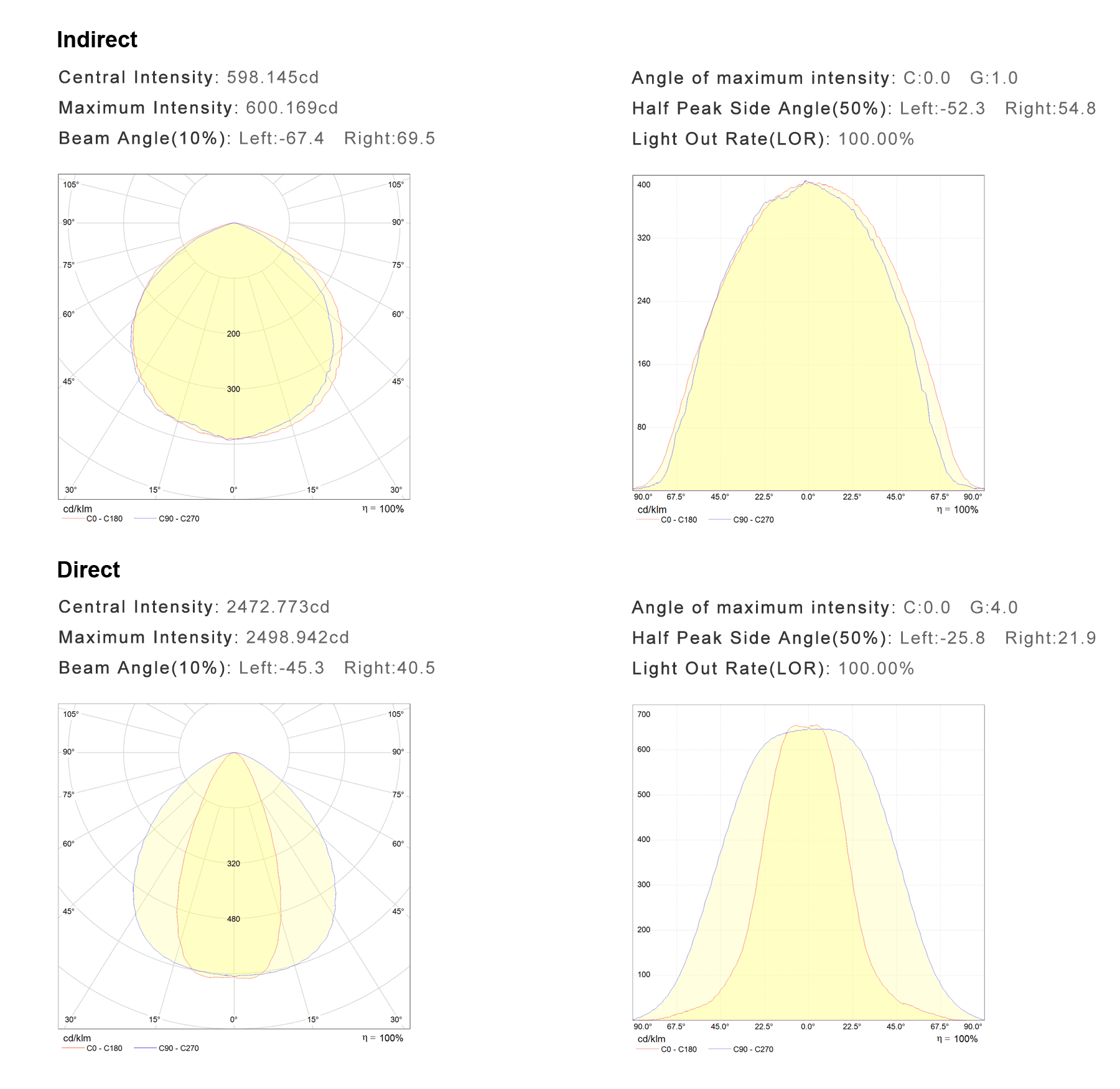

Photometric Results

Aluminum specifications

Stitching method

Composite signal

Different Size

Size	Input Power	Lm/W	Beam Angle	Luminous Flux	Ra
581mm	22w	Indirect: 110 Direct: 145	47.7°	Indirect: 679 Direct: 1905	Ra>80
861mm	32w	Indirect: 110 Direct: 145	47.7°	Indirect: 1067 Direct: 2795	Ra>80
1141mm	45w	Indirect: 110 Direct: 145	47.7°	Indirect: 1451 Direct: 3811	Ra>80
1421mm	57w	Indirect: 110 Direct: 145	47.7°	Indirect: 1843 Direct: 4826	Ra>80
1701mm	67w	Indirect: 110 Direct: 145	47.7°	Indirect: 2134 Direct: 5715	Ra>80
1981mm	78w	Indirect: 110 Direct: 145	47.7°	Indirect: 2522 Direct: 6604	Ra>80
2261mm	90w	Indirect: 110 Direct: 145	47.7°	Indirect: 2910 Direct: 7620	Ra>80

Different Power

Size	Input Power	Luminous Flux
L1136W62H82mm	38w	Indirect: 1120 Direct: 3302
	45w	Indirect: 1400 Direct: 3811
	52w	Indirect: 1680 Direct: 4318

Download All

Design Concept

Application

The simple and fashionable black,white and gray color design can fully match the requirements of the color of the lamps in different scenes, and the black and white color contrast design of the lamp end cover makes the whole lamp more attractive to the uuser's eye, highlighting itself in simplicity personality.
