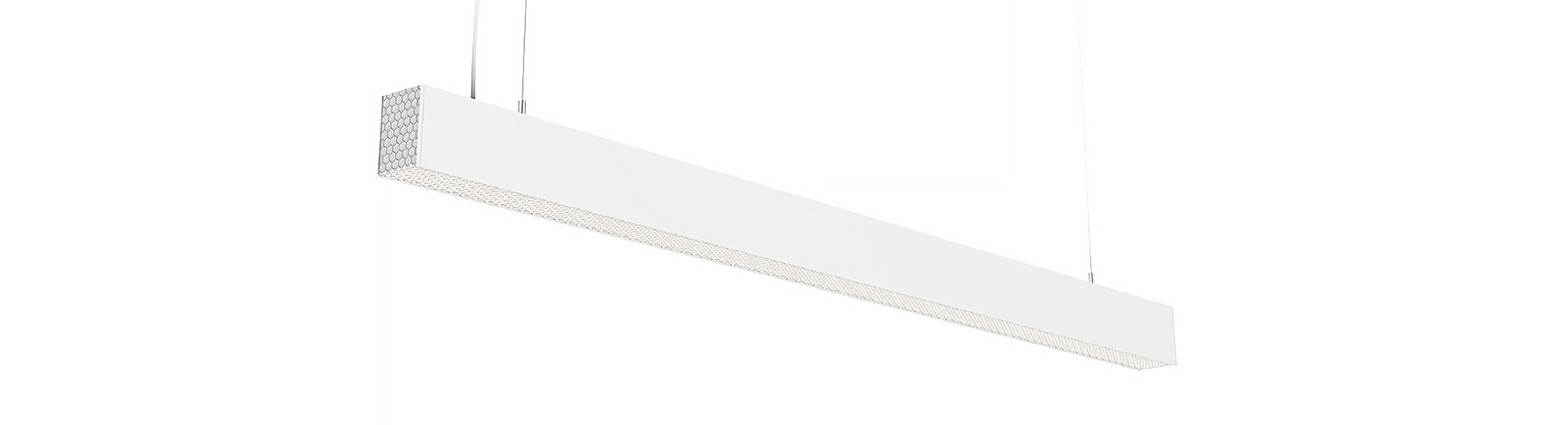

Honeycomb
PH-HC-07441-SL

The honeycomb chandelier is made of highquality aluminum alloy lamp body, and the diecasting ends are used at both ends to make the structure of the whole lamp more stable. At the end, the diffusing mask and the honeycomb antiglare device are added together with the whole lamp, so that the whole luminaire includes the curved surface to emit light, effectively「educing the UGR coefficient of the luminaire, reducing the damage of the light pollution to the human eye, and providing comfortable for the office.

Lighting application experience. Use scenarios: offices, conference rooms, study, public buildings, libraries, etc.

Light Distribution:

Double Sided Lighting

Size:

1135*74*102

Beam Angle:

71.9°

PH-HC-07441-SL
Size: 1135*74*102
Specification
  • Input Voltage: 220-240V
  • Input Power: 43.8W
  • Light Source: SAMSUNG 2835
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.973
  • Lm/W: Indirect: 99.3 Direct: 53.0
  • Color:
  • Power Efficiency: 88.0%
  • Luminous Flux: Indirect: 1400 Direct: 1571
  • Lnsulation Class: CLASS I
  • Output Voltage: DC 27-54V
  • UGR: 18.0
  • (G.W. / N.W.): 3.5/4.0kg
  • Output Current: DC 1050mA±5%
  • Beam Angle: 71.9°
  • Package Dimensions: 123*12*15.5cm
  • Lifespan: 30000H
  • Diffuser material: PMMA

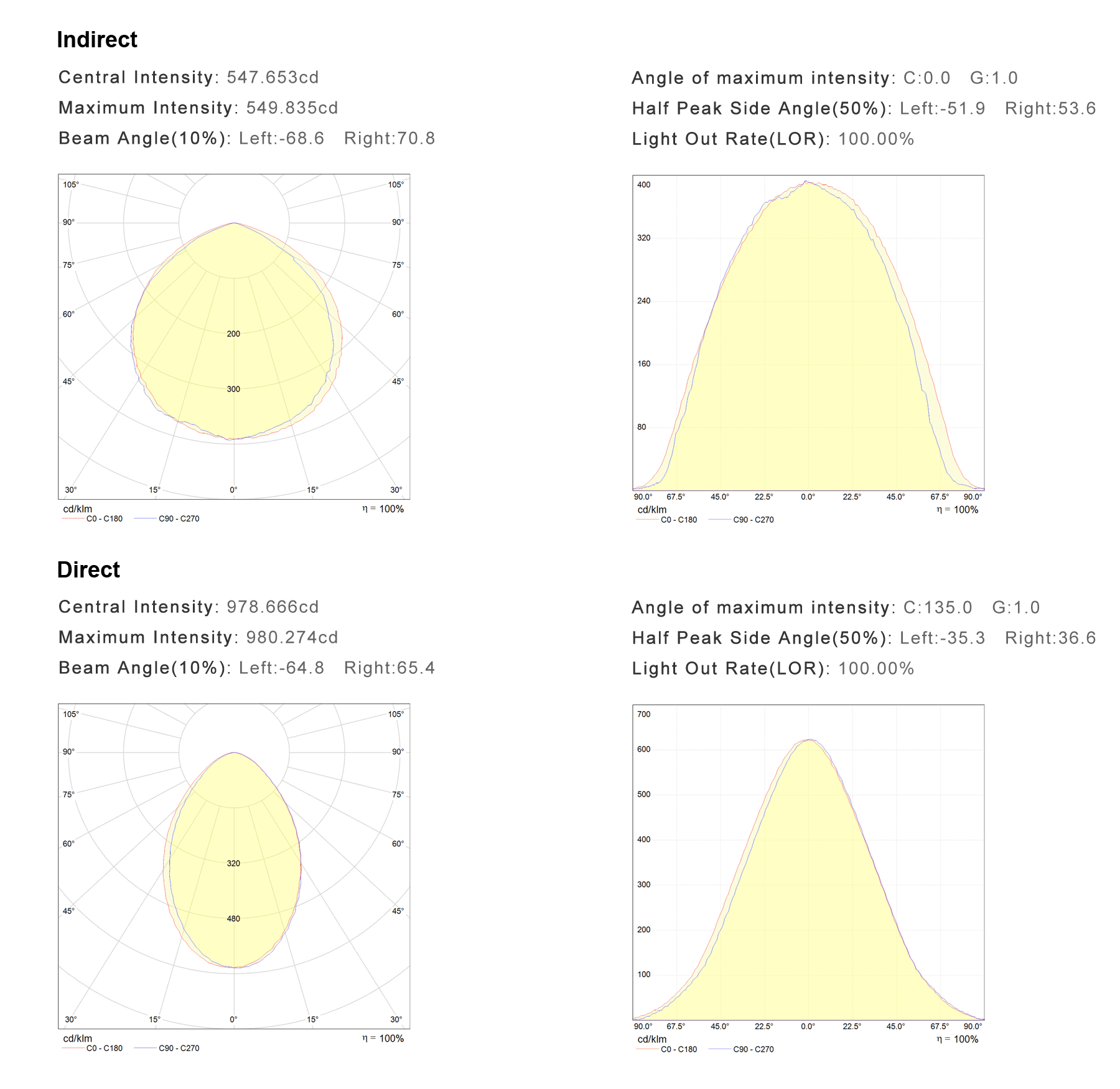

Photometric Results
Aluminum specifications
Stitching method
Composite signal
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
Different Power
Size Input Power Luminous Flux
Design Concept
Application
