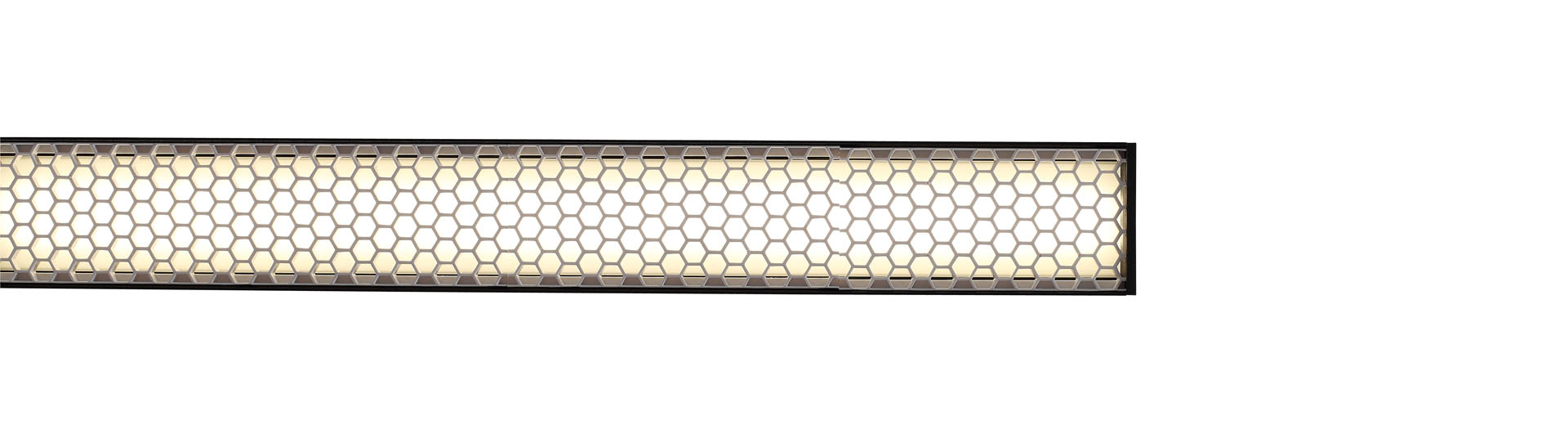

Honeycomb
PH-HC-04541-SL

The honeycomb chandelier is made of highquality aluminum alloy lamp body, and the diecasting ends are used at both ends to make the structure of the whole lamp more stable. At the end, the diffusing mask and the honeycomb antiglare device are added together with the whole lamp, so that the whole luminaire includes the curved surface to emit light, effectively「educing the UGR coefficient of the luminaire, reducing the damage of the light pollution to the human eye, and providing comfortable for the office.

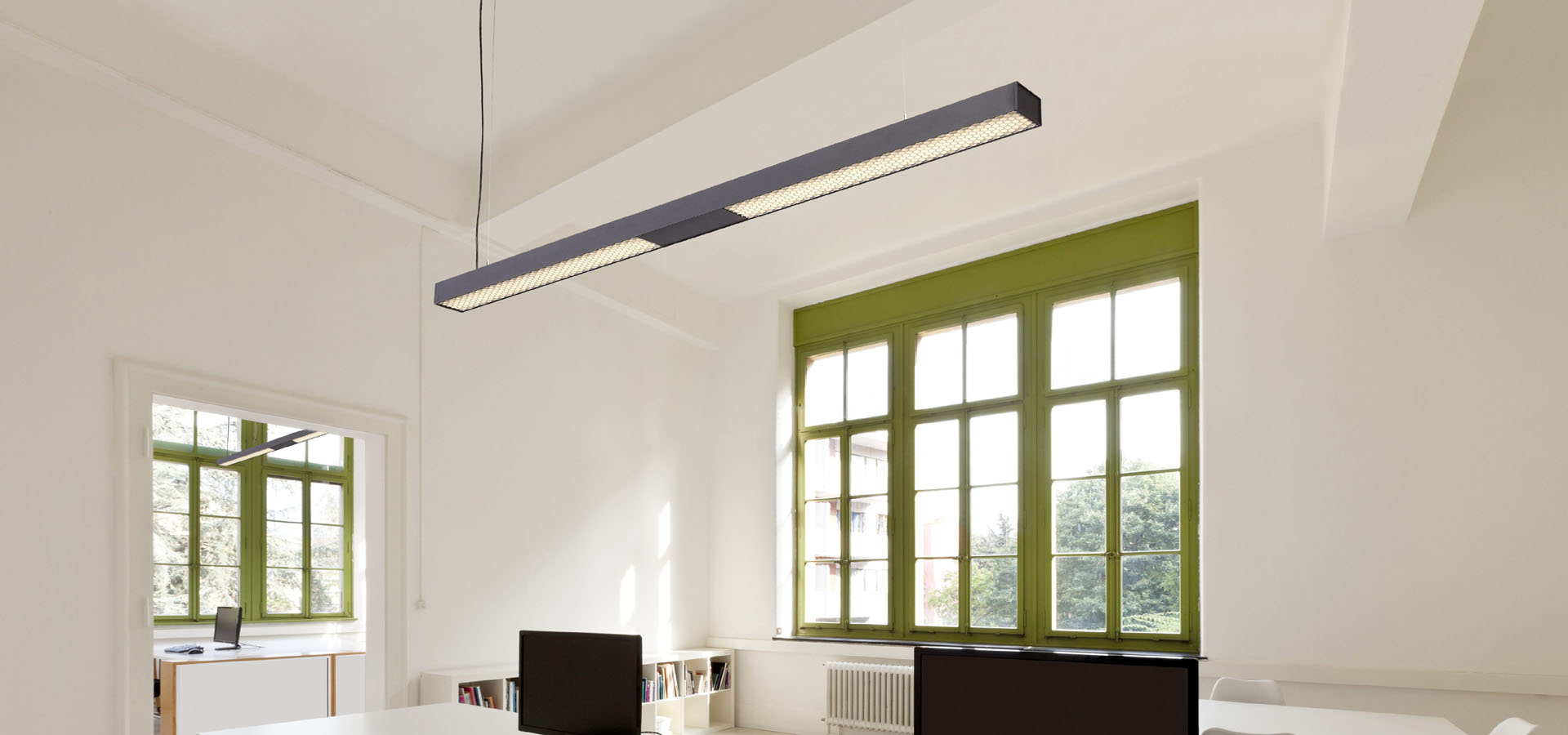

Lighting application experience. Use scenarios: offices, conference rooms, study, public buildings, libraries, etc.

Light Distribution:

Single Sided Lighting

Size:

1357*74*45

Beam Angle:

65.4°

PH-HC-04541-SL
Size: 1357*74*45
Specification
  • Input Voltage: 220-240V
  • Input Power: 26.5W
  • Light Source: SAMSUNG 2835
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.973
  • Lm/W: 50
  • Color:
  • Power Efficiency: 88.0%
  • Luminous Flux: 1325
  • Lnsulation Class: CLASS I
  • Output Voltage: DC 27-54V
  • UGR: 18.0
  • (G.W. / N.W.): 2.8/3.3kg
  • Output Current: DC 700mA±5%
  • Beam Angle: 65.4°
  • Package Dimensions: 146*12*10cm
  • Lifespan: 30000H
  • Diffuser material: PMMA

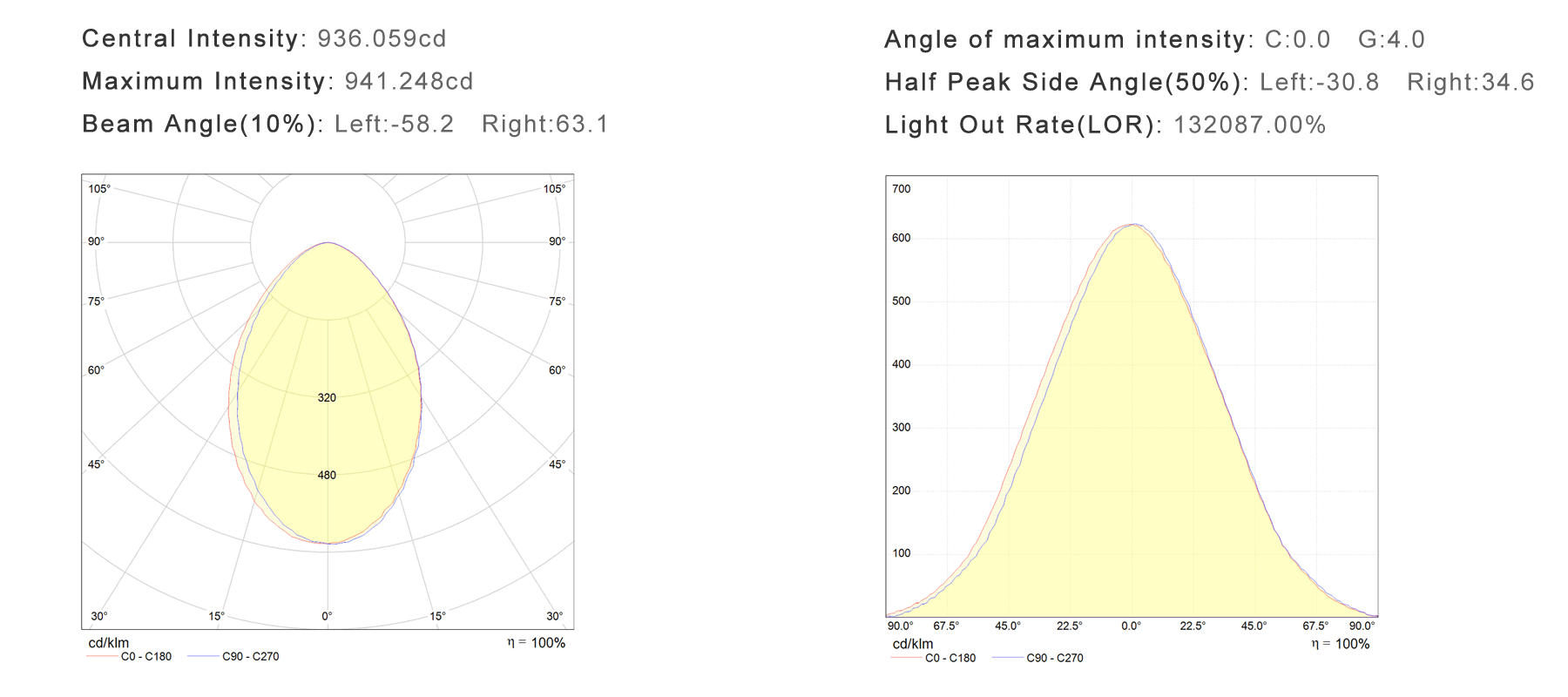

Photometric Results
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
1357mm 30w 50 65.4° 1325 Ra>80
2070mm 45w 50 65.4° 1987 Ra>80
2700mm 60w 50 65.4° 2650 Ra>80
Different Power
Size Input Power Luminous Flux
L1380*W74*H45MM 22w 971
30w 1325
36w 1590
