Slim
PH-SM-03442-SL
Light Distribution:

Double Sided Lighting

Size:

1133*34*100

Beam Angle:

58.8°

PH-SM-03442-SL
Size: 1133*34*100
Specification
  • Input Voltage: 220-240V
  • Input Power: 45W
  • Light Source: SAMSUNG 2835 0.5W
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.969
  • Lm/W: Indirect: 110 Direct: 110
  • Color:
  • Power Efficiency: 88.0%
  • Luminous Flux: Indirect: 1451 Direct: 3130
  • Lnsulation Class: CLASS I
  • Output Voltage: DC 27-54V
  • UGR: < 19.0
  • (G.W. / N.W.): 2.8/3.3kg
  • Output Current: DC 1050mA±5%
  • Beam Angle: 58.8°
  • Package Dimensions: 126*8*15.5cm
  • Lifespan: 30000H

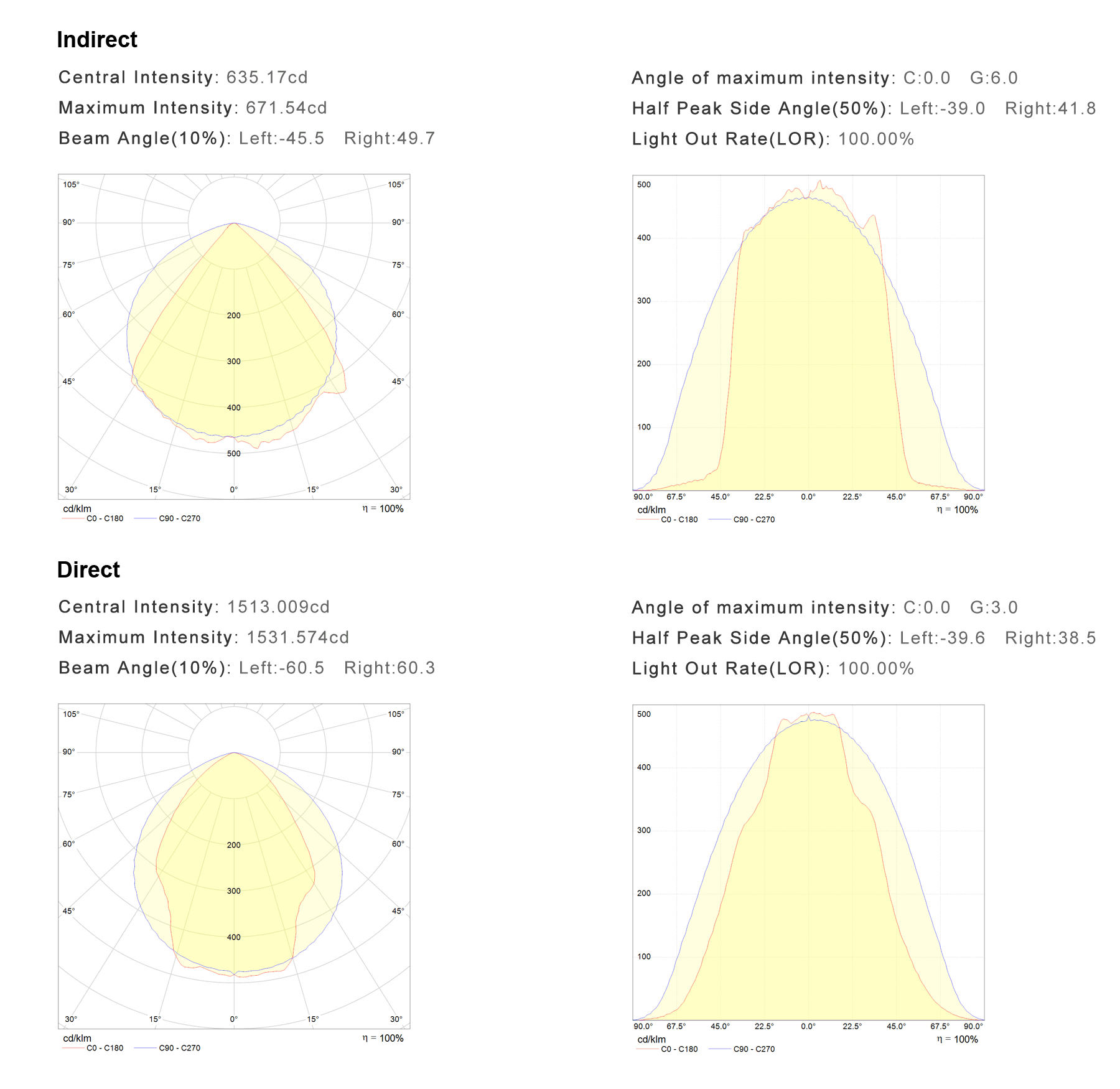

Photometric Results
Aluminum specifications
Stitching method
Composite signal
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
573mm 22w Indirect: 110 Direct: 110 58.8° Indirect: 679 Direct: 1560 Ra>80
853mm 32w Indirect: 110 Direct: 110 58.8° Indirect: 1067 Direct: 2288 Ra>80
1133mm 45w Indirect: 110 Direct: 110 58.8° Indirect: 1451 Direct: 3130 Ra>80
1413mm 57w Indirect: 110 Direct: 110 58.8° Indirect: 1843 Direct: 3952 Ra>80
1693mm 67w Indirect: 110 Direct: 110 58.8° Indirect: 2134 Direct: 4680 Ra>80
1973mm 78w Indirect: 110 Direct: 110 58.8° Indirect: 2522 Direct: 5408 Ra>80
2253mm 90w Indirect: 110 Direct: 110 58.8° Indirect: 2910 Direct: 6240 Ra>80
Different Power
Size Input Power Luminous Flux
L1133*W34*H100mm 38w Indirect: 1292 Direct: 2600
45w Indirect: 1451 Direct: 3130
52w Indirect: 1768 Direct: 3640
