Slim
PH-SM-03412-SL
Light Distribution:

Double Sided Lighting

Size:

1126*34*100

Beam Angle:

36.6°

Previous Page

PH-SM-03412-SL
Size: 1126*34*100
Specification
  • Input Voltage: 220-240V
  • Input Power: 40W
  • Light Source: OSRAM 3030
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.964
  • Lm/W: Indirect: 110 Direct: 106
  • Color:
  • Power Efficiency: 88.0%
  • Luminous Flux: Indirect: 2000 Direct: 2120
  • Lnsulation Class: CLASS I
  • Output Voltage: DC 27-54V
  • UGR: < 18.0
  • (G.W. / N.W.): 2.6/3.1kg
  • Output Current: DC 1050mA±5%
  • Beam Angle: 36.6°
  • Package Dimensions: 126*8*15.5cm
  • Lifespan: 30000H

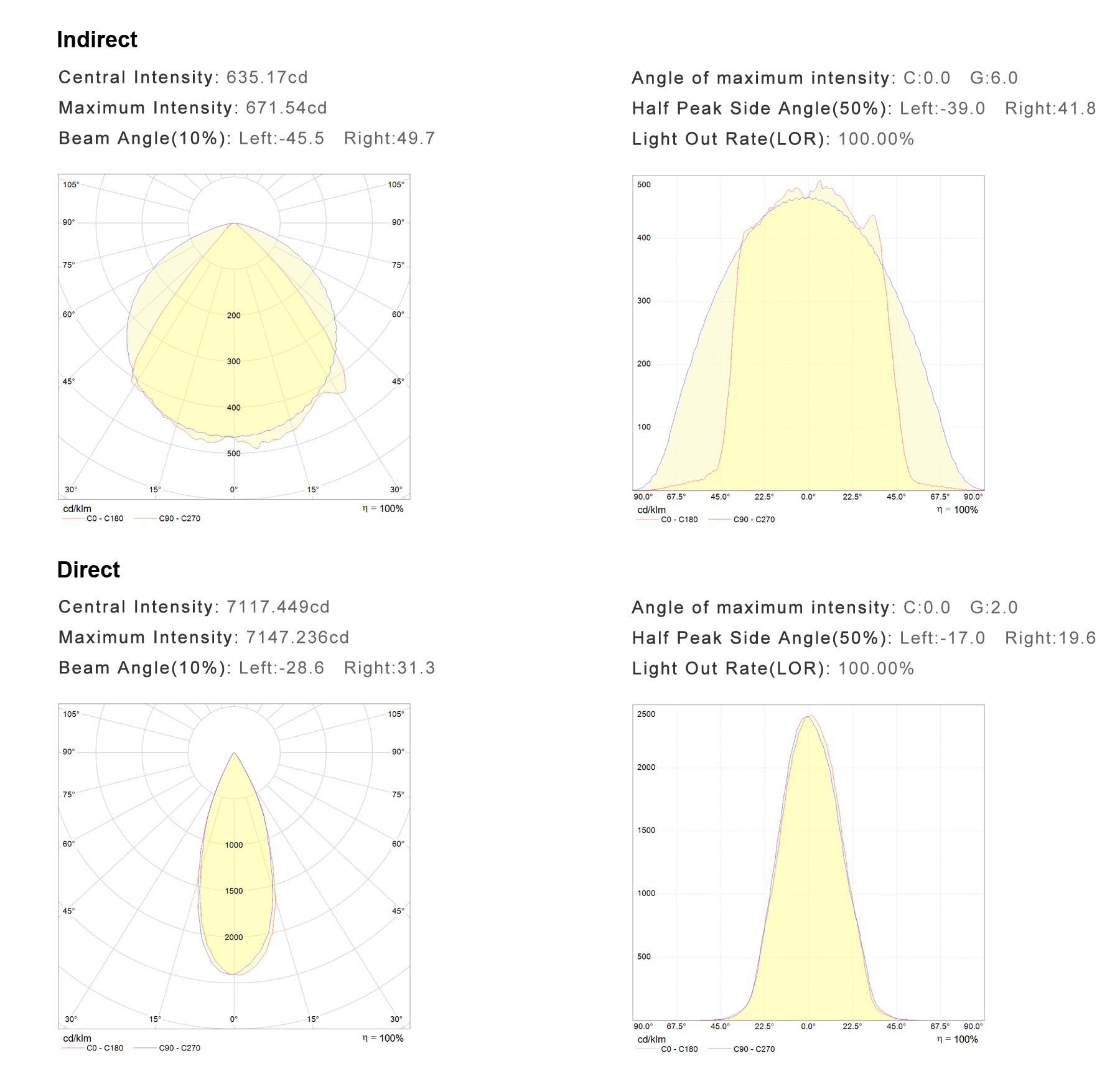

Photometric Results
Aluminum specifications
Stitching method
Composite signal
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
1126mm 28w Indirect: 110 Direct: 106 36.6° Indirect: 2000 Direct: 2120 Ra>80
2239mm 60w Indirect: 110 Direct: 106 36.6° Indirect: 4000 Direct: 4240 Ra>80
Different Power
Size Input Power Luminous Flux
L1126*W34*H100mm 30w Indirect: 1500 Direct: 1590
40w Indirect: 2000 Direct: 2120
Download All
Design Concept

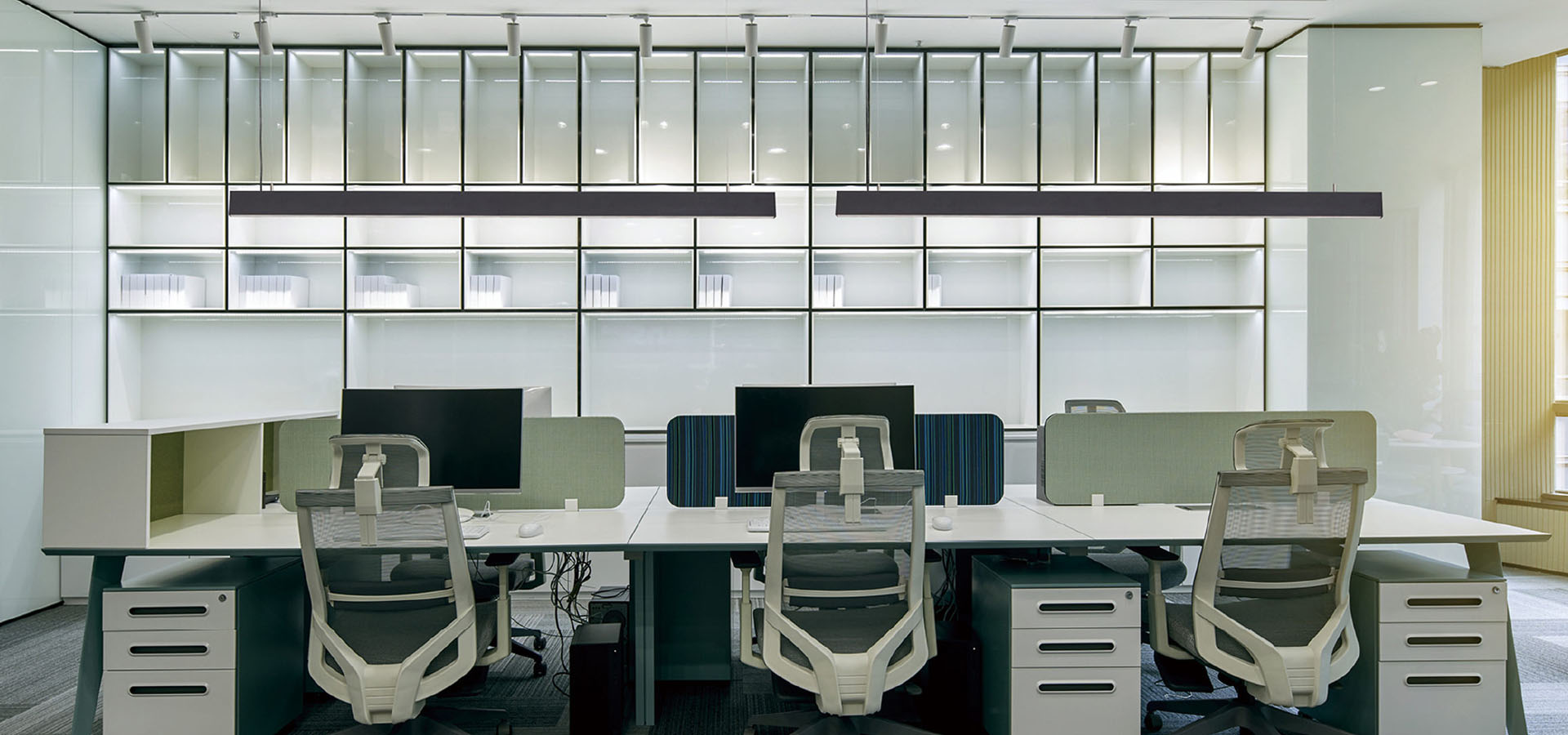

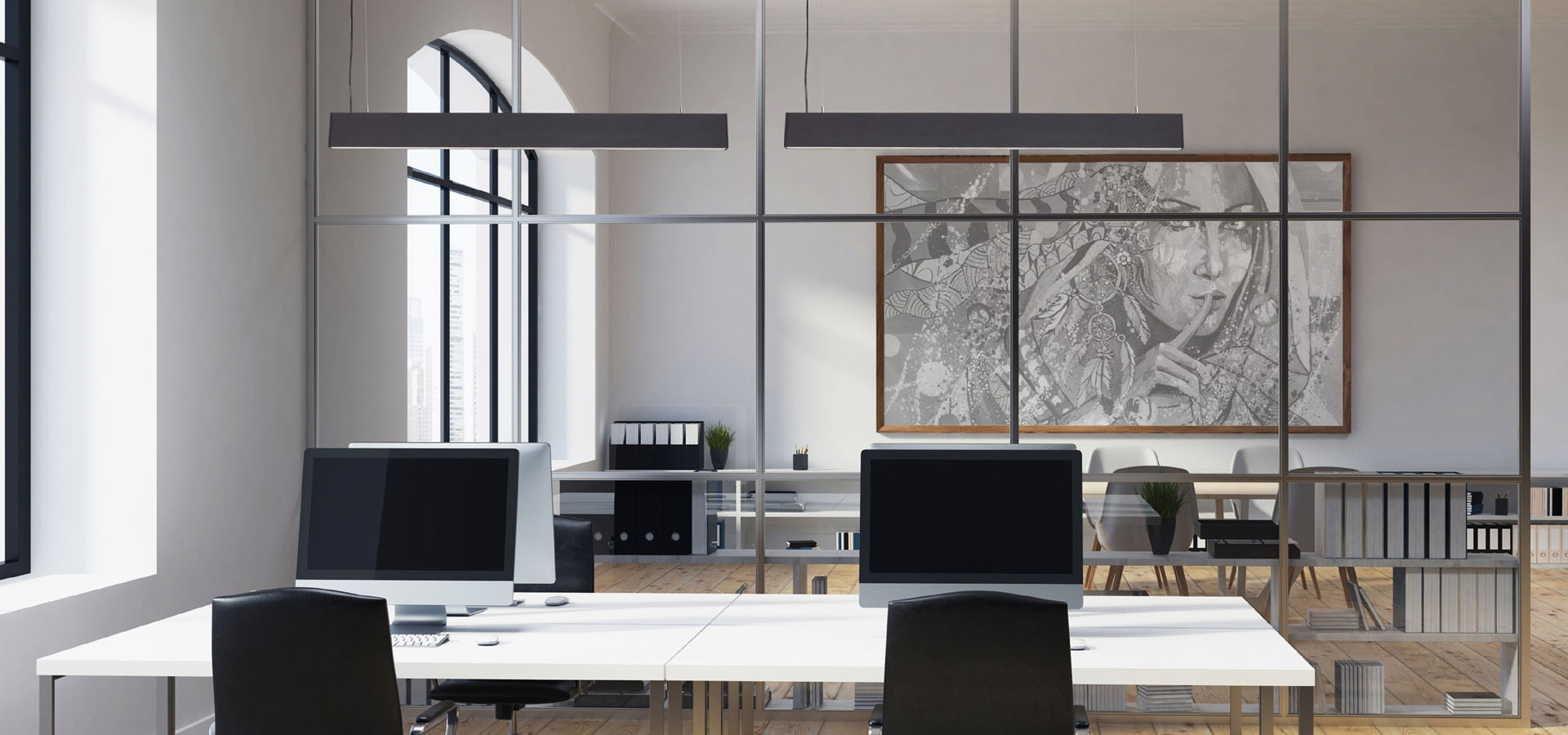

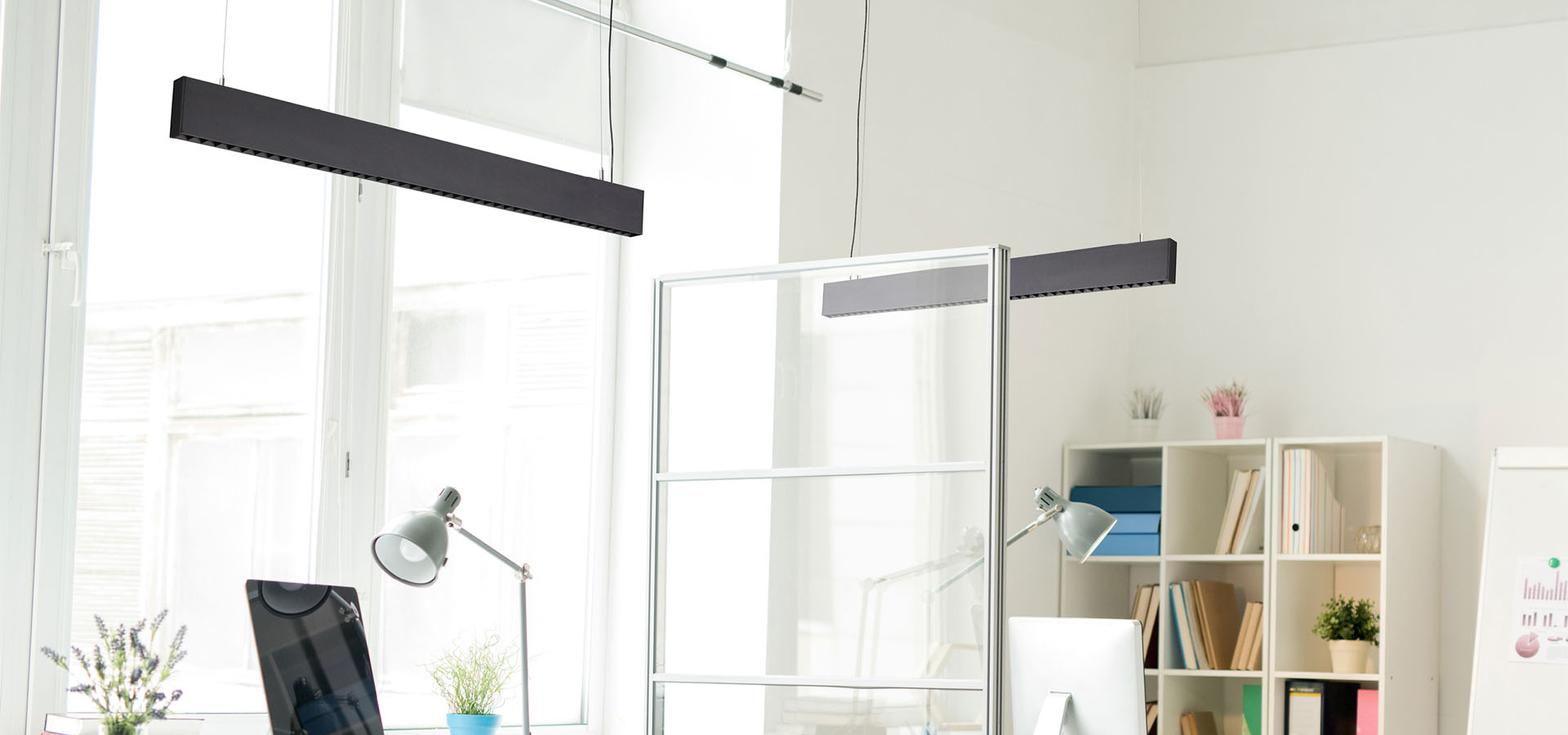

Application
Product Video
