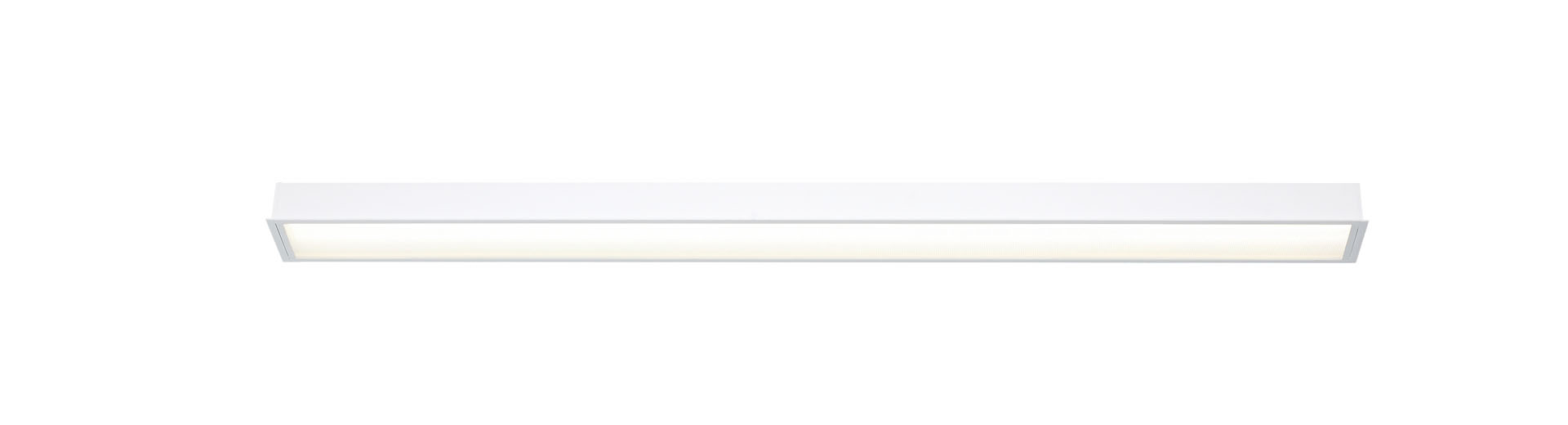

Zebra
PH-ZB-07971-RLT

The zebra linear lamp series adopts high-quality aluminum alloy lamp body.The two end caps adopt the advanced design concept of surface without screws and the depth optimization on the anti-light leakage structure,so that the end cap surface has no screw and excellent anti-light leakage effect, and at the same time solves Acrylic thermal expansion and contraction.The modular design of the lamp body shell and the light source aluminum material makes the lamp installation simple and convenient for future maintenance.

Light Distribution:

Single Sided Lighting

Size:

1143*79*40

Beam Angle:

87.7°

PH-ZB-07971-RLT
Size: 1143*79*40
Specification
  • Input Voltage: 220-240V
  • Input Power: 30W
  • Light Source: SAMSUNG 2835
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.969
  • Lm/W: 92.3
  • Color:
  • Power Efficiency: 88.0%
  • Luminous Flux: 2510
  • Lnsulation Class: CLASS I
  • Output Voltage: DC 27-54V
  • UGR: <19
  • (G.W. / N.W.): 2.9/3.4kg
  • Output Current: DC 700mA±5%
  • Beam Angle: 87.7°
  • Package Dimensions: 133*12.5*9cm
  • Lifespan: 30000H
  • Diffuser material: PMMA

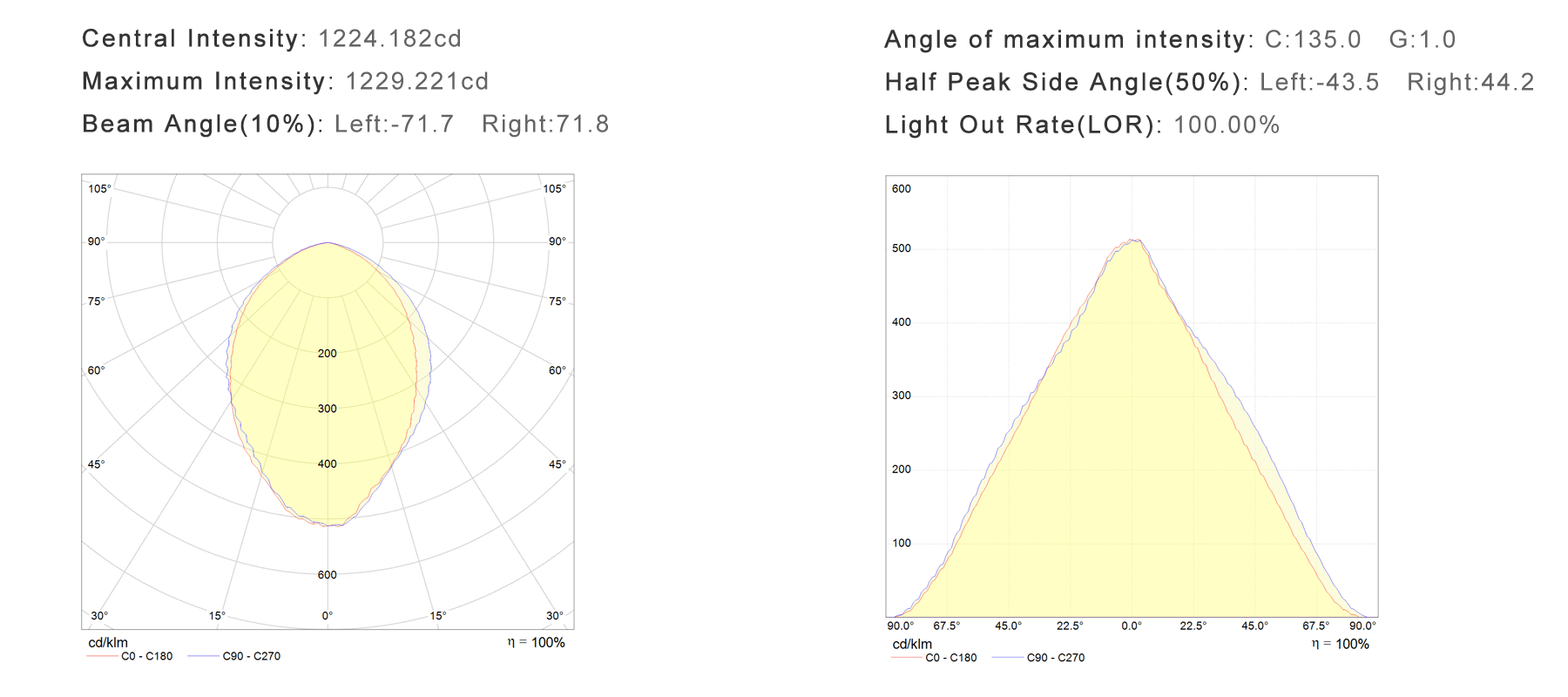

Photometric Results
Aluminum specifications
Stitching method
Installation method
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
583mm 15w 92.3 87.7° 1254 Ra>80
863mm 22w 92.3 87.7° 1839 Ra>80
1143mm 30w 92.3 87.7° 2510 Ra>80
1423mm 38w 92.3 87.7° 3176 Ra>80
1703mm 45w 92.3 87.7° 3762 Ra>80
1983mm 52w 92.3 87.7° 4347 Ra>80
2263mm 60w 92.3 87.7° 5016 Ra>80
Different Power
Size Input Power Luminous Flux
L1143*W79*H40mm 20w 1672
30w 2510
40w 3344
