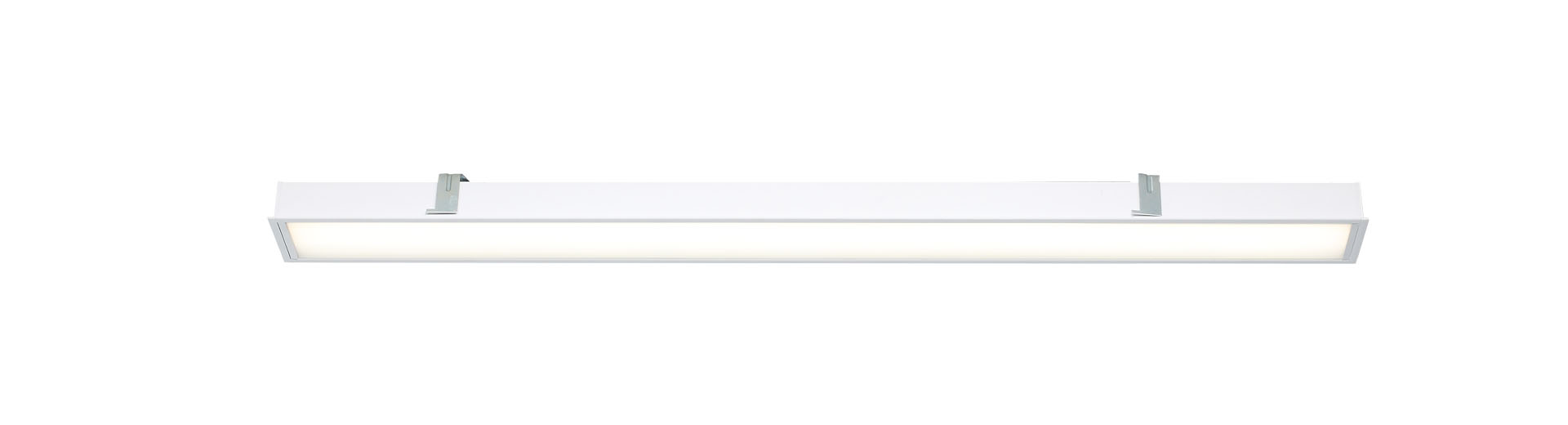

Zebra
PH-ZB-07961-RLX

The zebra linear lamp series adopts high-quality aluminum alloy lamp body.The two end caps adopt the advanced design concept of surface without screws and the depth optimization on the anti-light leakage structure,so that the end cap surface has no screw and excellent anti-light leakage effect, and at the same time solves Acrylic thermal expansion and contraction.The modular design of the lamp body shell and the light source aluminum material makes the lamp installation simple and convenient for future maintenance.

Light Distribution:

Single Sided Lighting

Size:

1143*79*40

Beam Angle:

96°

PH-ZB-07961-RLX
Size: 1143*79*40
Specification
  • Input Voltage: 220-240V
  • Input Power: 30W
  • Light Source: SAMSUNG 2835
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.969
  • Lm/W: 102
  • Color:
  • Power Efficiency: 88.0%
  • Luminous Flux: 2778
  • Lnsulation Class: CLASS I
  • Output Voltage: DC 27-54V
  • UGR: <19
  • (G.W. / N.W.): 2.9/3.4kg
  • Output Current: DC 700mA±5%
  • Beam Angle: 96°
  • Package Dimensions: 133*12.5*9cm
  • Lifespan: 30000H
  • Diffuser material: PMMA
Photometric Results
Aluminum specifications
Stitching method
Installation method
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
583mm 15w 102 96° 1389 Ra>80
863mm 22w 102 96° 2037 Ra>80
1143mm 30w 102 96° 2778 Ra>80
1423mm 38w 102 96° 3518 Ra>80
1703mm 45w 102 96° 4167 Ra>80
1983mm 52w 102 96° 4815 Ra>80
2263mm 60w 102 96° 5556 Ra>80
Different Power
Size Input Power Luminous Flux
L1143*W79*H40mm 20w 1855
30w 2778
40w 3704
