Zebra
PH-ZB-06241-SL

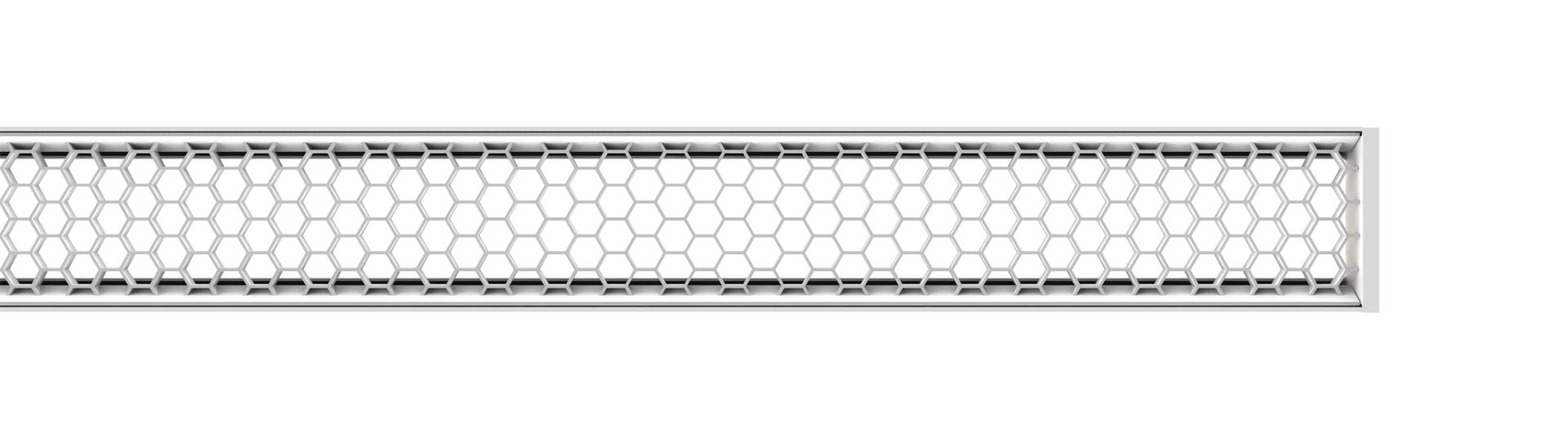

The zebra linear lamp series adopts high-quality aluminum alloy lamp body.The two end caps adopt the advanced design concept of surface without screws and the depth optimization on the anti-light leakage structure,so that the end cap surface has no screw and excellent anti-light leakage effect, and at the same time solves Acrylic thermal expansion and contraction.The modular design of the lamp body shell and the light source aluminum material makes the lamp installation simple and convenient for future maintenance.

Light Distribution:

Single Sided Lighting

Size:

1132*62*82

Beam Angle:

79.10°

PH-ZB-06241-SL
Size: 1132*62*82
Specification
  • Input Voltage: 220-240V
  • Input Power: 30W
  • Light Source: SAMSUNG 2835 SJ
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.97
  • Lm/W: 63.247
  • Color:
  • Power Efficiency: 88.0%
  • Luminous Flux: 1739.29
  • Lnsulation Class: CLASS I
  • Output Voltage: DC 27-54V
  • UGR: <18
  • (G.W. / N.W.): 3.2/3.7kg
  • Output Current: DC 700mA±5%
  • Beam Angle: 79.10°
  • Package Dimensions: 123*10.5*13.5cm
  • Lifespan: 30000H
  • Diffuser material: PC
Photometric Results
Aluminum specifications
Stitching method
Composite signal
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
576mm 15w 70 79.10° 975 Ra>80
856mm 22w 70 79.10° 1430 Ra>80
1136mm 30w 70 79.10° 1950 Ra>80
1416mm 38w 70 79.10° 2470 Ra>80
1696mm 45w 70 79.10° 2925 Ra>80
1976mm 52w 70 79.10° 3380 Ra>80
2256mm 60w 70 79.10° 3900 Ra>80
Different Power
Size Input Power Luminous Flux
L1136*W62*H82mm 20w 1300
30w 1950
40w 2600
