PH-PL-50013-SL

The sound absorbing panel is made of 100% polyester fiber material. It has sound absorption, flame retardant,non—toxic, non—irritating and misunderstanding. It is a new material that integrates sound absorption, heat insulation and decorative effects. The excellent optical system of the polarized light cup and the upper polarized lens, the excellent deep light control design can reduce the UGR of the lamp, reduce the damage of the glare to the eyes, and improve the working efficiency of the user.

Application places: office, conference room, study, library.

Light Distribution:

Double Sided Lighting

Size:

1320*500*57

Beam Angle:

Indirect:140° Direct: 70°

PH-PL-50013-SL
Size: 1320*500*57
Specification
  • Input Voltage: 220-240V
  • Input Power: 60W
  • Light Source: OSRAM 3030 1W
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.97
  • Lm/W: Indirect: 102 Direct: 100
  • Color:
  • Power Efficiency: 88.0%
  • Luminous Flux: Indirect: 2325 Direct: 2450
  • Lnsulation Class: CLASS I
  • Output Voltage: DC 27-54V
  • UGR: < 18.0
  • (G.W. / N.W.): 5.36/6.86KG
  • Output Current: DC 1200mA±5%
  • Beam Angle: Indirect:140° Direct: 70°
  • Package Dimensions: 55*10.5*137
  • Lifespan: 30000H

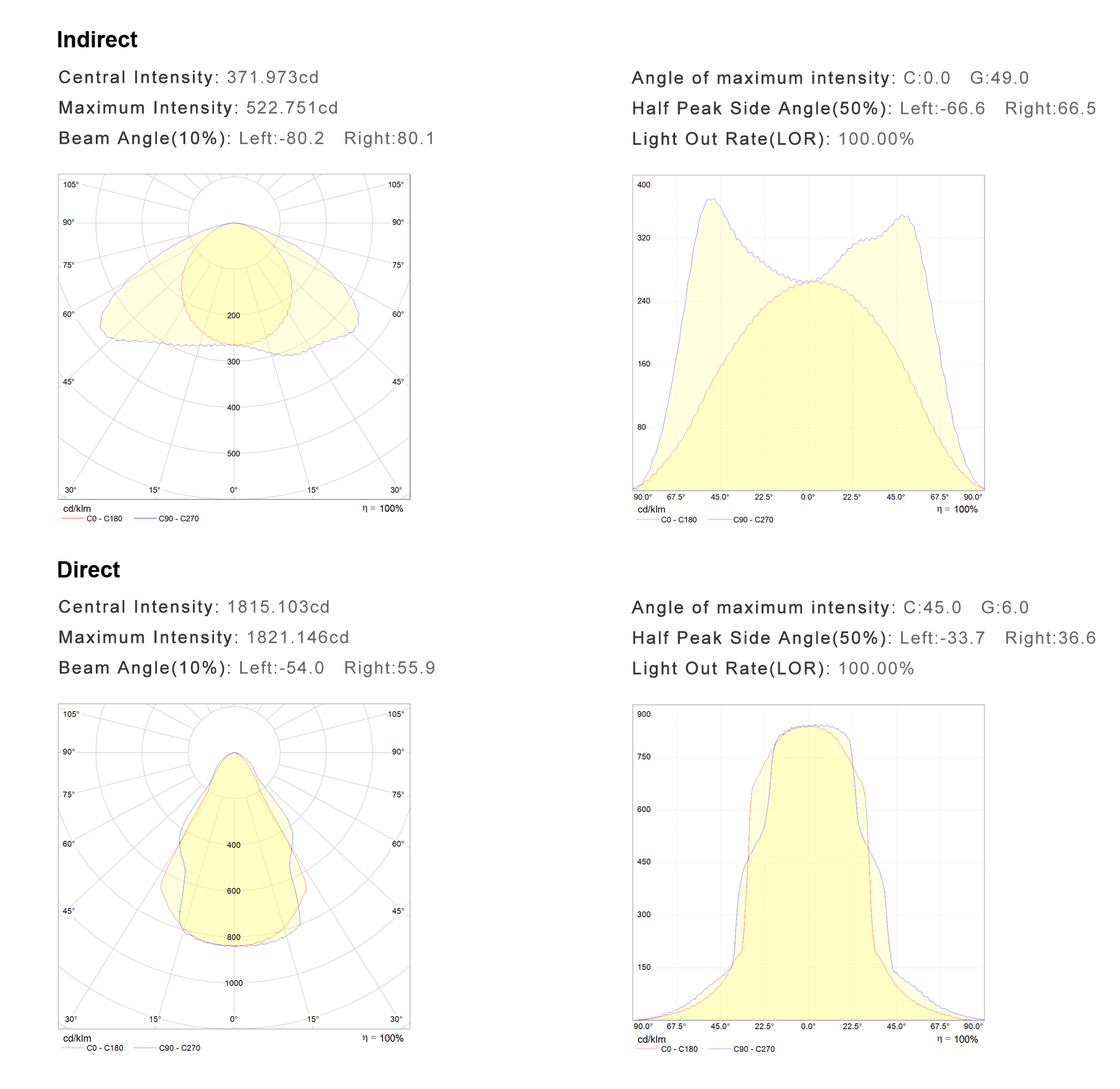

Photometric Results
The length of the aluminum
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
Different Power
Size Input Power Luminous Flux
Design Concept

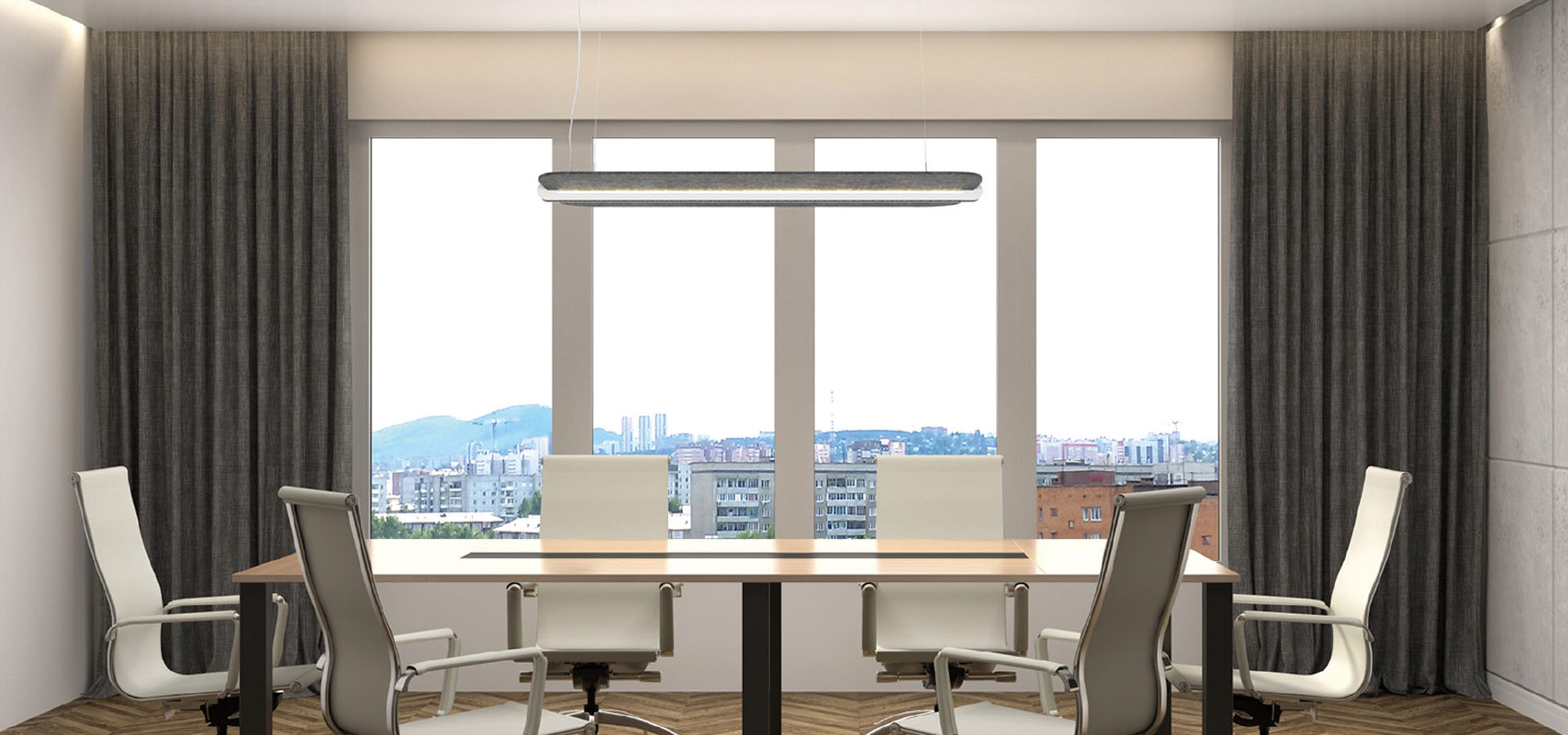

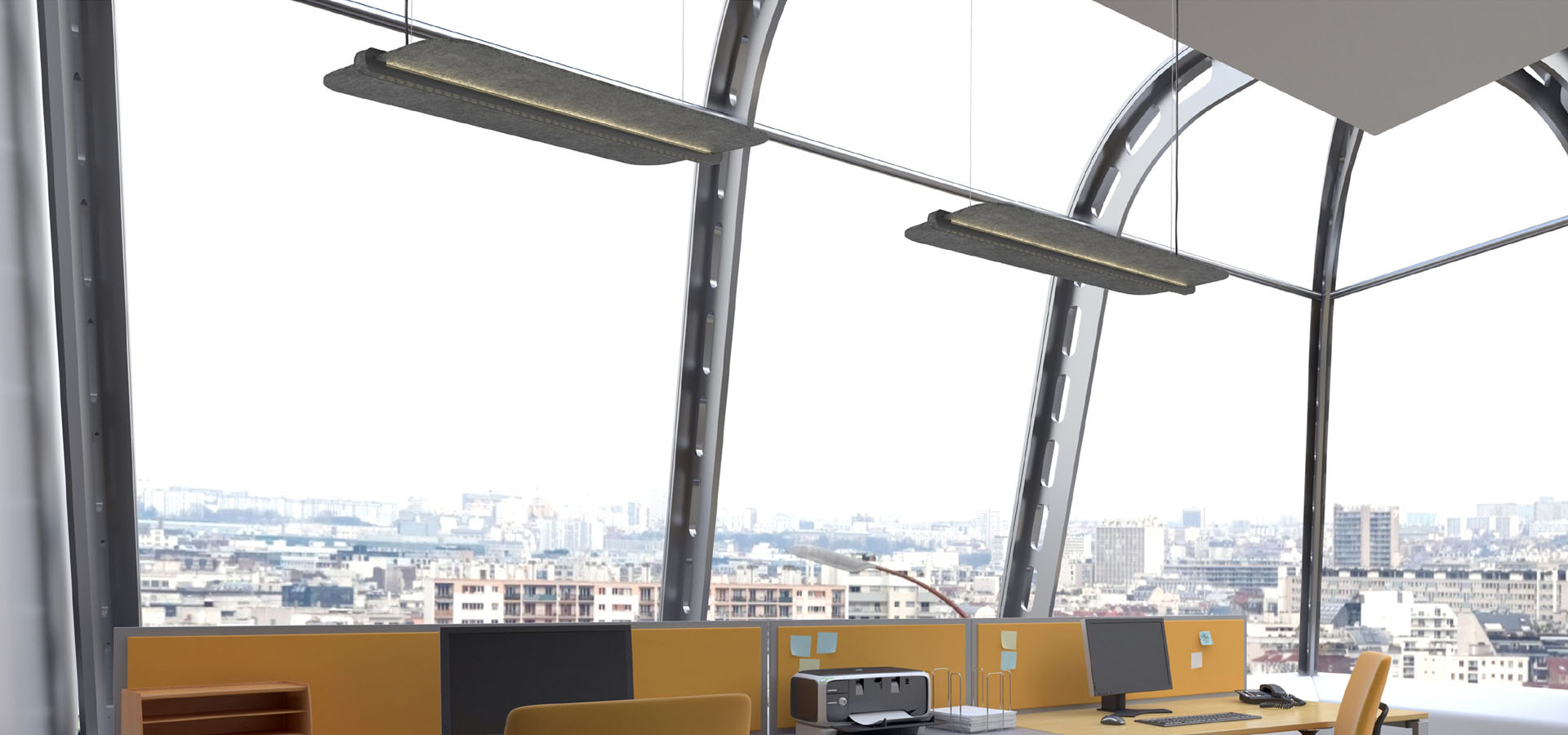

Application
Product Video
