Zebra
PH-ZB-06242-SL

The zebra linear lamp series adopts high-quality aluminum alloy lamp body.The two end caps adopt the advanced design concept of surface without screws and the depth optimization on the anti-light leakage structure,so that the end cap surface has no screw and excellent anti-light leakage effect, and at the same time solves Acrylic thermal expansion and contraction.The modular design of the lamp body shell and the light source aluminum material makes the lamp installation simple and convenient for future maintenance.

Light Distribution:

Double Sided Lighting

Size:

1132*62*82

Beam Angle:

Indirect: 107° Direct: 72°

PH-ZB-06242-SL
Size: 1132*62*82
Specification
  • Input Voltage: 220-240V
  • Input Power: 45W
  • Light Source: SAMSUNG 2835
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.97
  • Lm/W: Indirect: 110 Direct: 70
  • Color:
  • Power Efficiency: 88.0%
  • Luminous Flux: Indirect: 1451 Direct: 1950
  • Lnsulation Class: CLASS I
  • Output Voltage: DC 27-54V
  • UGR: <18
  • (G.W. / N.W.): 3.2/3.7kg
  • Output Current: DC 1050mA±5%
  • Beam Angle: Indirect: 107° Direct: 72°
  • Package Dimensions: 123*10.5*13.5cm
  • Lifespan: 30000H
  • Diffuser material: PC

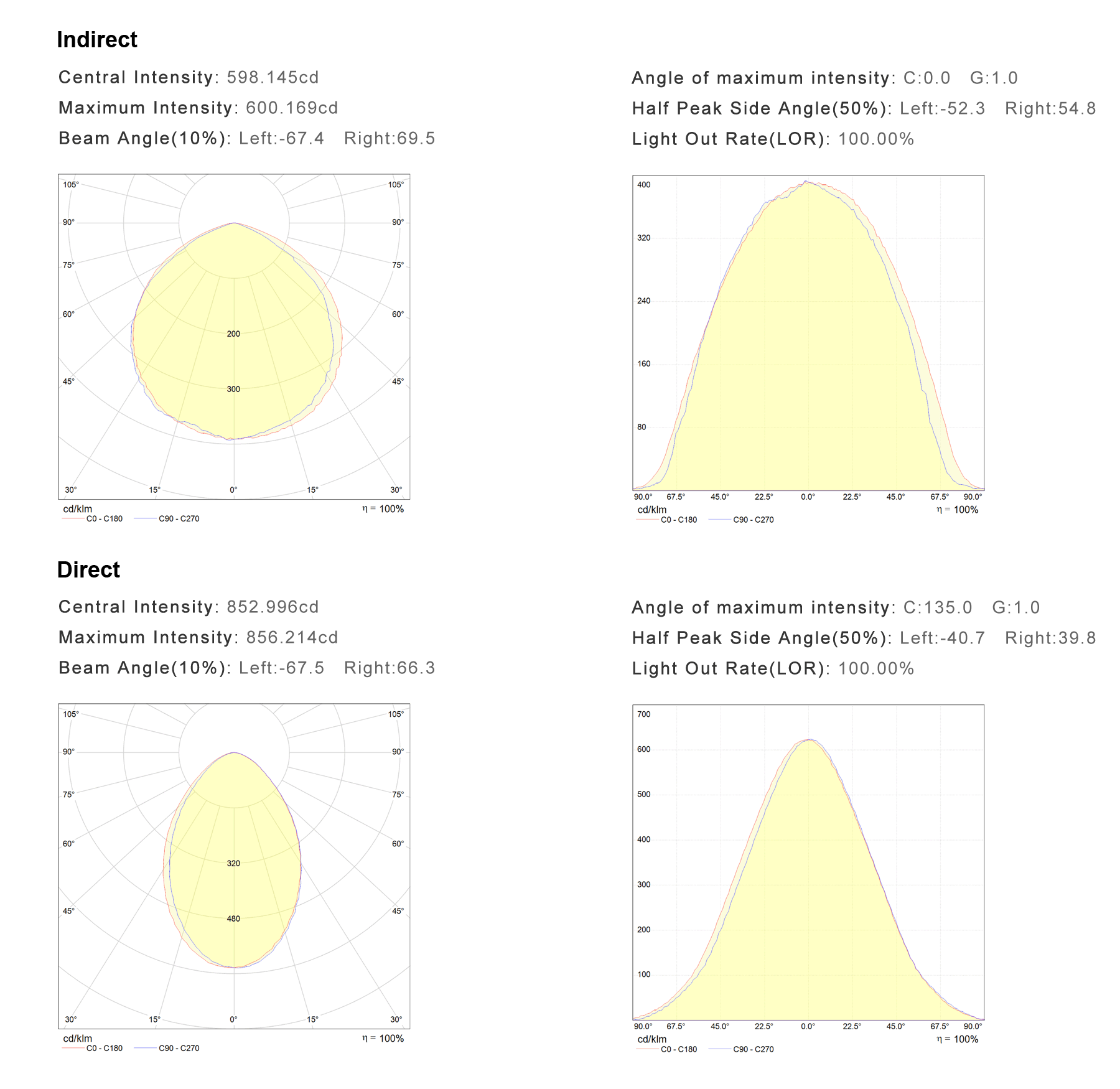

Photometric Results
Aluminum specifications
Stitching method
Composite signal
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
576mm 22w Indirect: 110 Direct: 70 72° Indirect: 679 Direct: 975 Ra>80
856mm 32w Indirect: 110 Direct: 70 72° Indirect: 1067 Direct: 1430 Ra>80
1136mm 45w Indirect: 110 Direct: 70 72° Indirect: 1451 Direct: 1950 Ra>80
1416mm 57w Indirect: 110 Direct: 70 72° Indirect: 1843 Direct: 2470 Ra>80
1696mm 67w Indirect: 110 Direct: 70 72° Indirect: 2134 Direct: 2925 Ra>80
1976mm 78w Indirect: 110 Direct: 70 72° Indirect: 2522 Direct: 3380 Ra>80
2256mm 90w Indirect: 110 Direct: 70 72° Indirect: 2910 Direct: 3900 Ra>80
Different Power
Size Input Power Luminous Flux
L1136*W62*H82mm 38w Indirect: 1160 Direct: 1690
45w Indirect: 1451 Direct: 1950
52w Indirect: 1741 Direct: 2210
