The zebra linear lamp series adopts high-quality aluminum alloy lamp body.The two end caps adopt the advanced design concept of surface without screws and the depth optimization on the anti-light leakage structure,so that the end cap surface has no screw and excellent anti-light leakage effect, and at the same time solves Acrylic thermal expansion and contraction.The modular design of the lamp body shell and the light source aluminum material makes the lamp installation simple and convenient for future maintenance.
Double Sided Lighting
1136*62*82

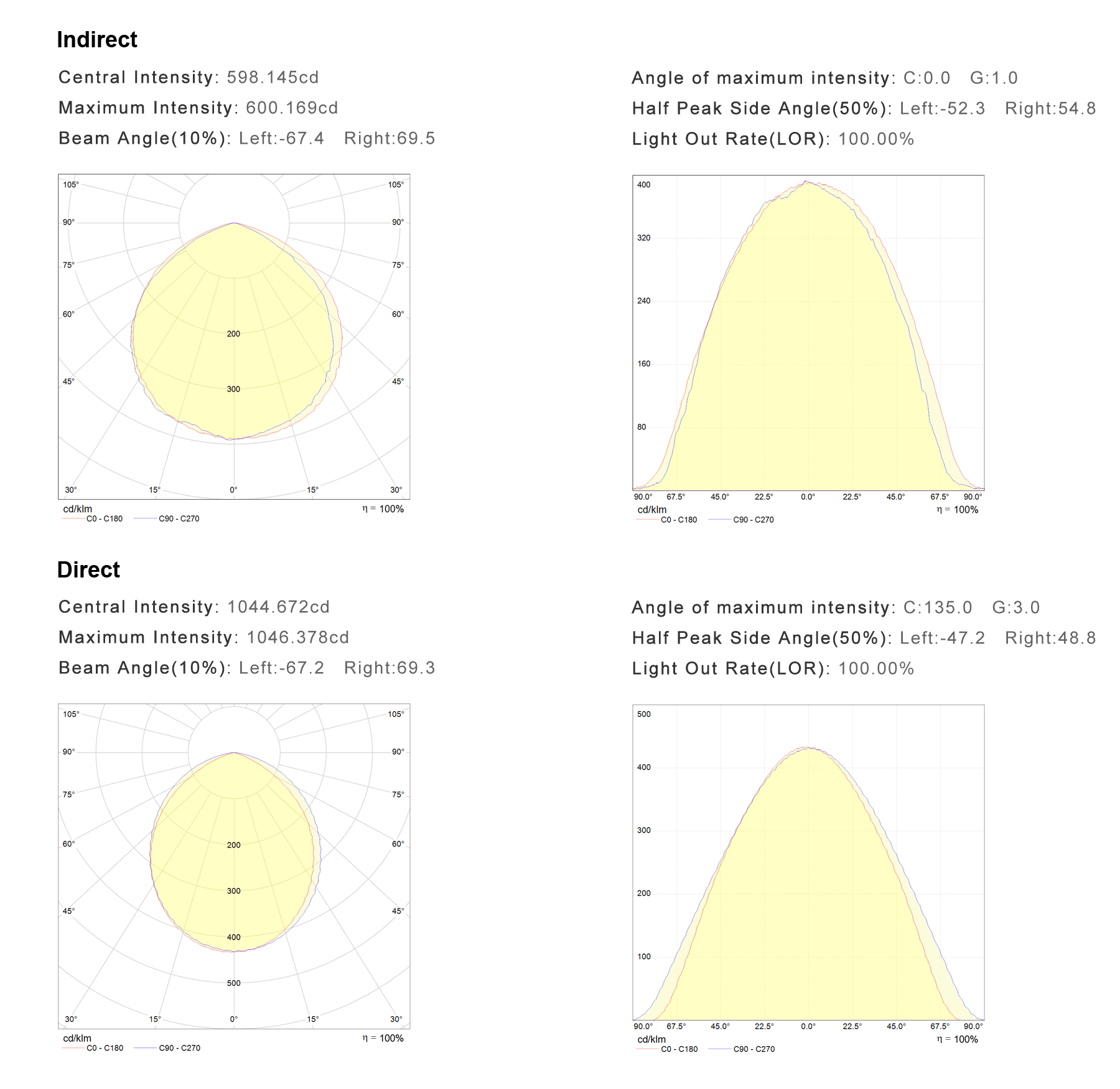

Indirect: 107° Direct: 96°
| Size | Input Power | Lm/W | Beam Angle | Luminous Flux | Ra |
| 576mm | 22w | Indirect: 110 Direct: 84 | 96° | Indirect: 679 Direct: 1206 | Ra>80 |
| 856mm | 32w | Indirect: 110 Direct: 84 | 96° | Indirect: 1067 Direct: 1770 | Ra>80 |
| 1136mm | 45w | Indirect: 110 Direct: 84 | 96° | Indirect: 1451 Direct: 2414 | Ra>80 |
| 1416mm | 57w | Indirect: 110 Direct: 84 | 96° | Indirect: 1843 Direct: 3057 | Ra>80 |
| 1696mm | 67w | Indirect: 110 Direct: 84 | 96° | Indirect: 2134 Direct: 3620 | Ra>80 |
| 1976mm | 78w | Indirect: 110 Direct: 84 | 96° | Indirect: 2522 Direct: 4183 | Ra>80 |
| 2256mm | 90w | Indirect: 110 Direct: 84 | 96° | Indirect: 2910 Direct: 4827 | Ra>80 |
| Size | Input Power | Luminous Flux |
| L1136*W62*H82mm | 38w | Indirect: 1160 Direct: 2091 |
| 45w | Indirect: 1451 Direct: 2414 | |
| 52w | Indirect: 1741 Direct: 2735 |
Double Sided Lighting
1136*62*82
Indirect: 107° Direct: 101.5°
