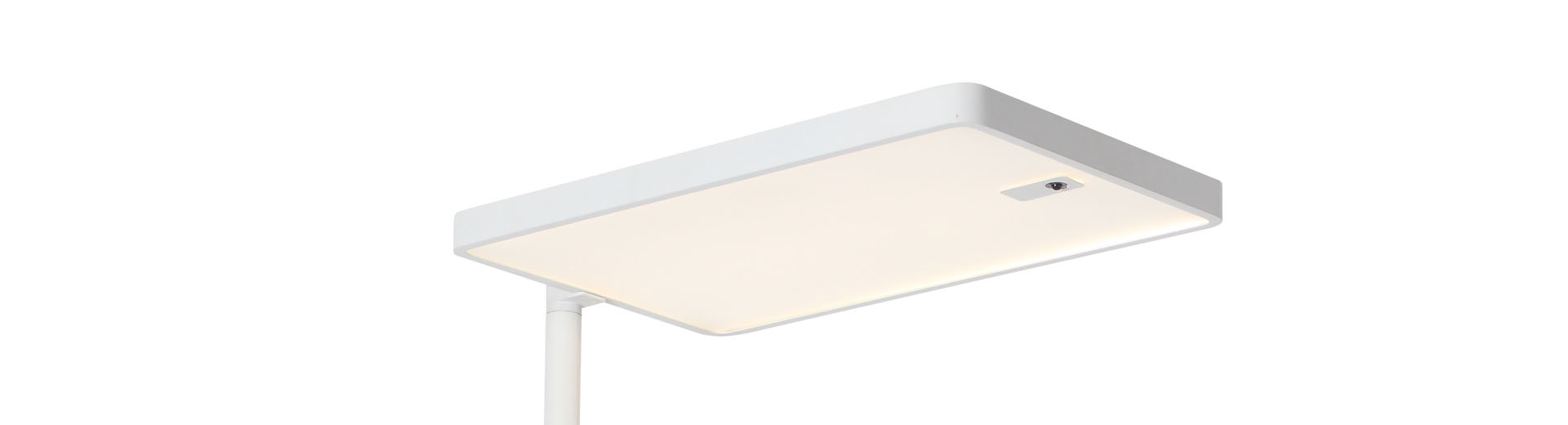

Personality series
PH-PL-38022-FL

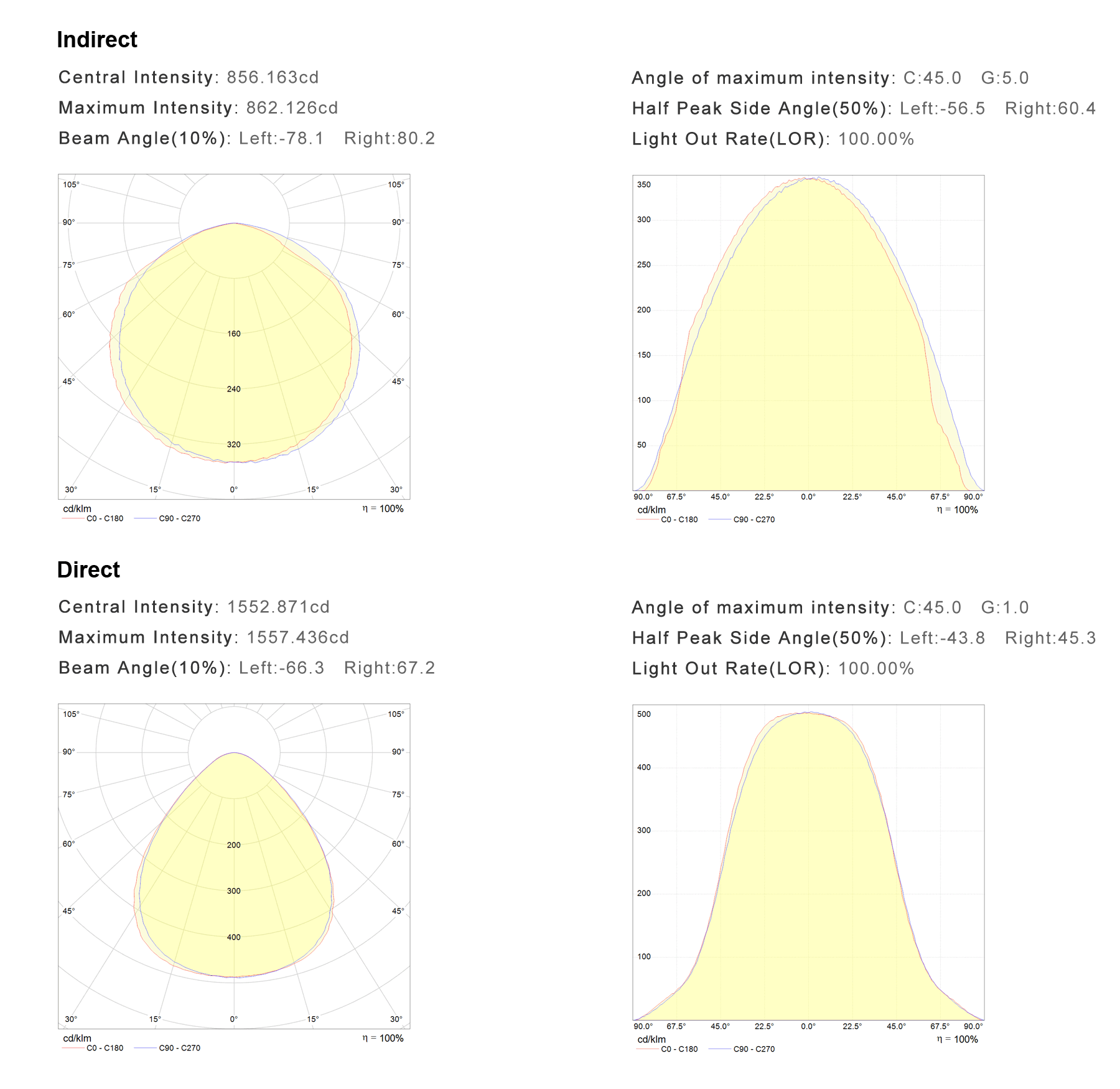

Light Distribution:
Double Sided Lighting
Specification
- Input Voltage: 220-240V
- Input Power: 59.2W
- Light Source: SAMSUNG 4014 0.5W
- Freqency Range: 50/60Hz
- Ra: Ra>80
- CCT: 3000/4000/6000K
- Power Factor: 0.951
- Lm/W: Indirect: 138 Direct: 80
- Color:
- Power Efficiency: 88.0%
- Luminous Flux: Indirect: 2472 Direct: 3440
- Lnsulation Class: CLASS Ⅱ
- Output Voltage: DC 27-40V
- UGR: < 18.0
- (G.W. / N.W.): 19.2/20.2kg
- Output Current: DC 1500mA±5%
- Beam Angle: 89.1°
- Package Dimensions: 193*50*18cm
- Lifespan: 30000H
- Diffuser material: PMMA
Different Size
| Size |
Input Power |
Lm/W |
Beam Angle |
Luminous Flux |
Ra |
Different Power
| Size |
Input Power |
Luminous Flux |
