Personality series

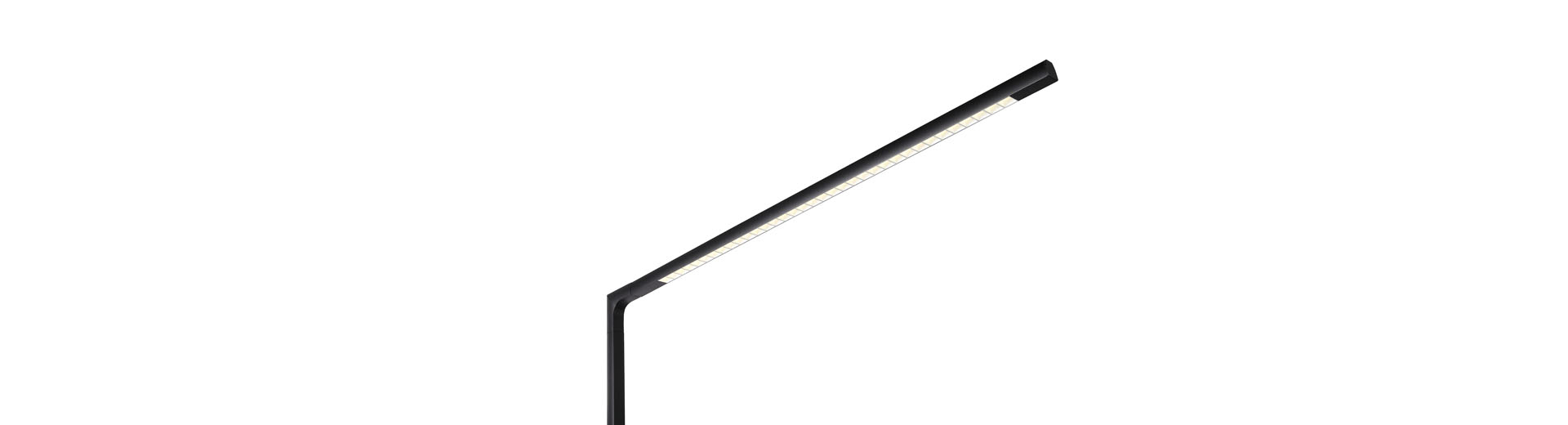

PH-PL-33512-FL
Light Distribution:

Double Sided Lighting

Size:

1340*300*2050mm

Beam Angle:

70°

PH-PL-33512-FL
Size: 1340*300*2050mm
Specification
  • Input Voltage: 220-240V
  • Input Power: 45W
  • Light Source: OSRAM 3030 1W
  • Freqency Range: 50/60Hz
  • Ra: Ra>80
  • CCT: 3000/4000/6000K
  • Power Factor: 0.97
  • Lm/W: Indirect: 110 Direct: 104
  • Color:
  • Power Efficiency: 88.0%
  • Luminous Flux: Indirect: 2600 Direct: 2500
  • Lnsulation Class: CLASS Ⅱ
  • Output Voltage: DC 27-54V
  • UGR: < 18.0
  • (G.W. / N.W.): 12.4/13.5kg
  • Output Current: DC 1400mA±5%
  • Beam Angle: 70°
  • Package Dimensions: 207*25*10cm/44.5*34.5*5.5cm
  • Lifespan: 30000H

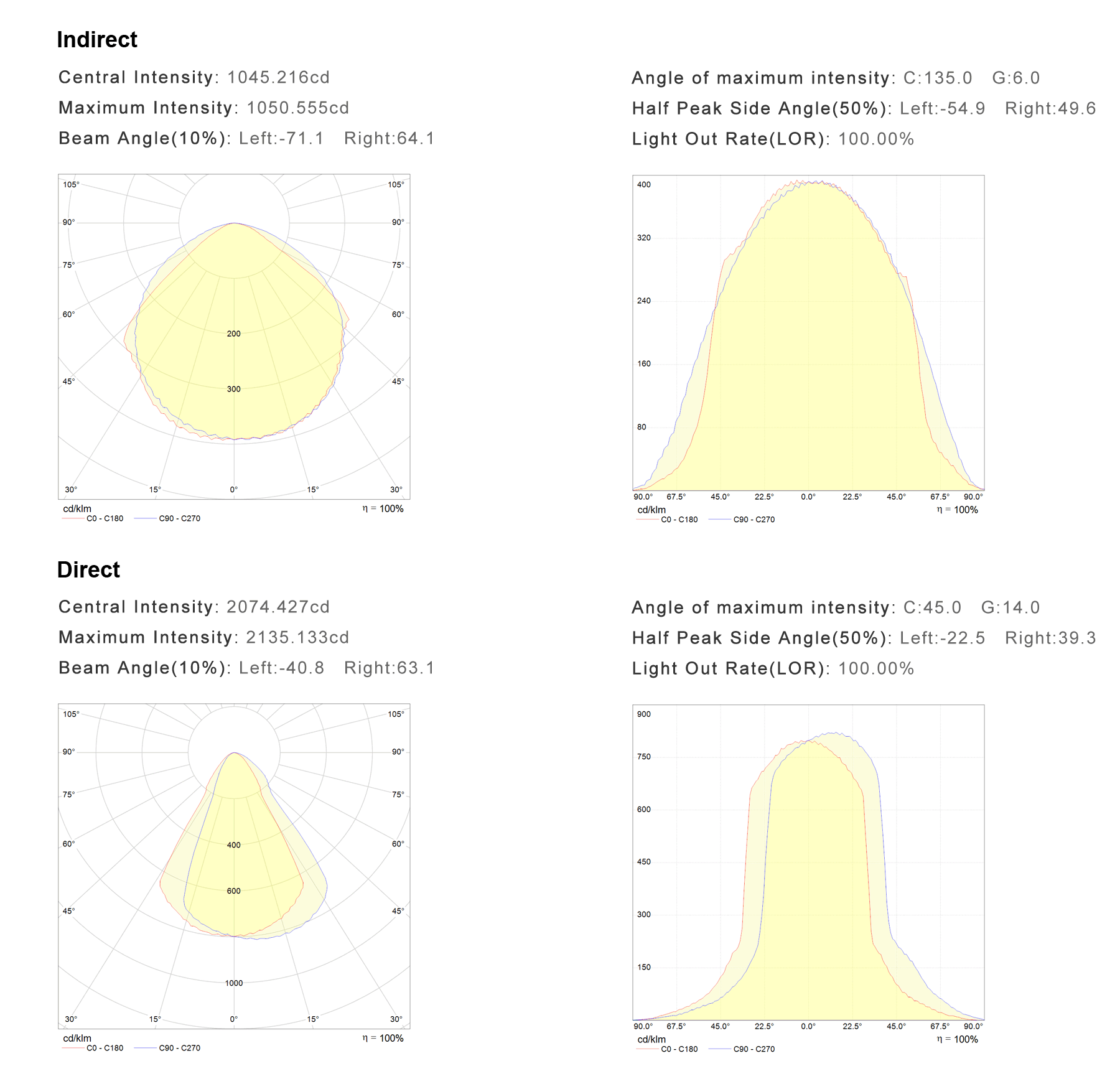

Photometric Results
Function Manual
Different Size
Size Input Power Lm/W Beam Angle Luminous Flux Ra
Different Power
Size Input Power Luminous Flux
Design Concept
Application
Product Video
