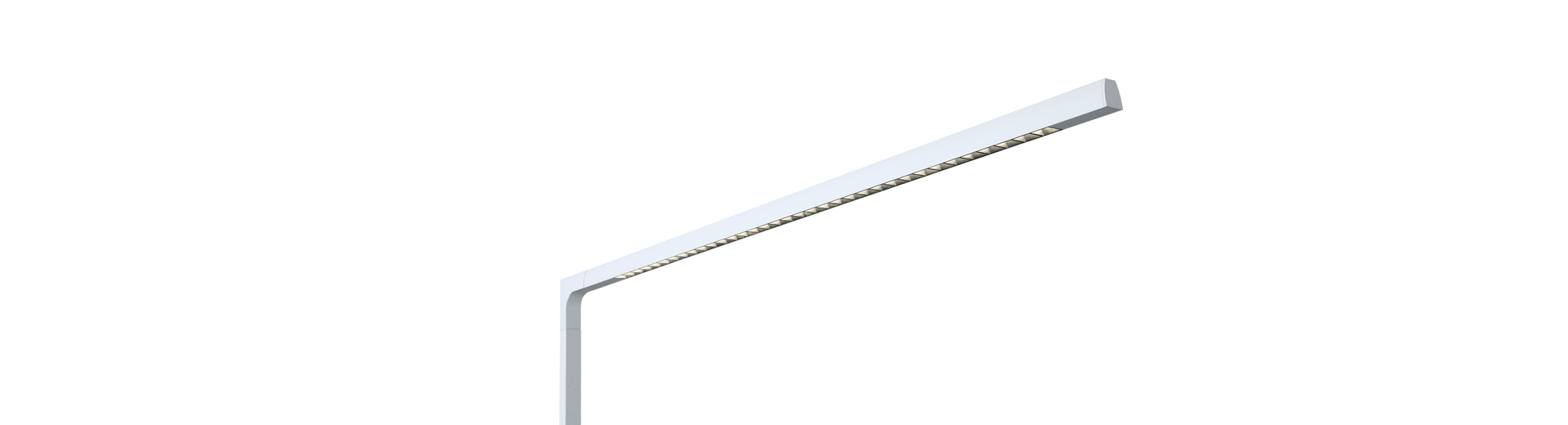

Personality series
PH-PL-33512-DL

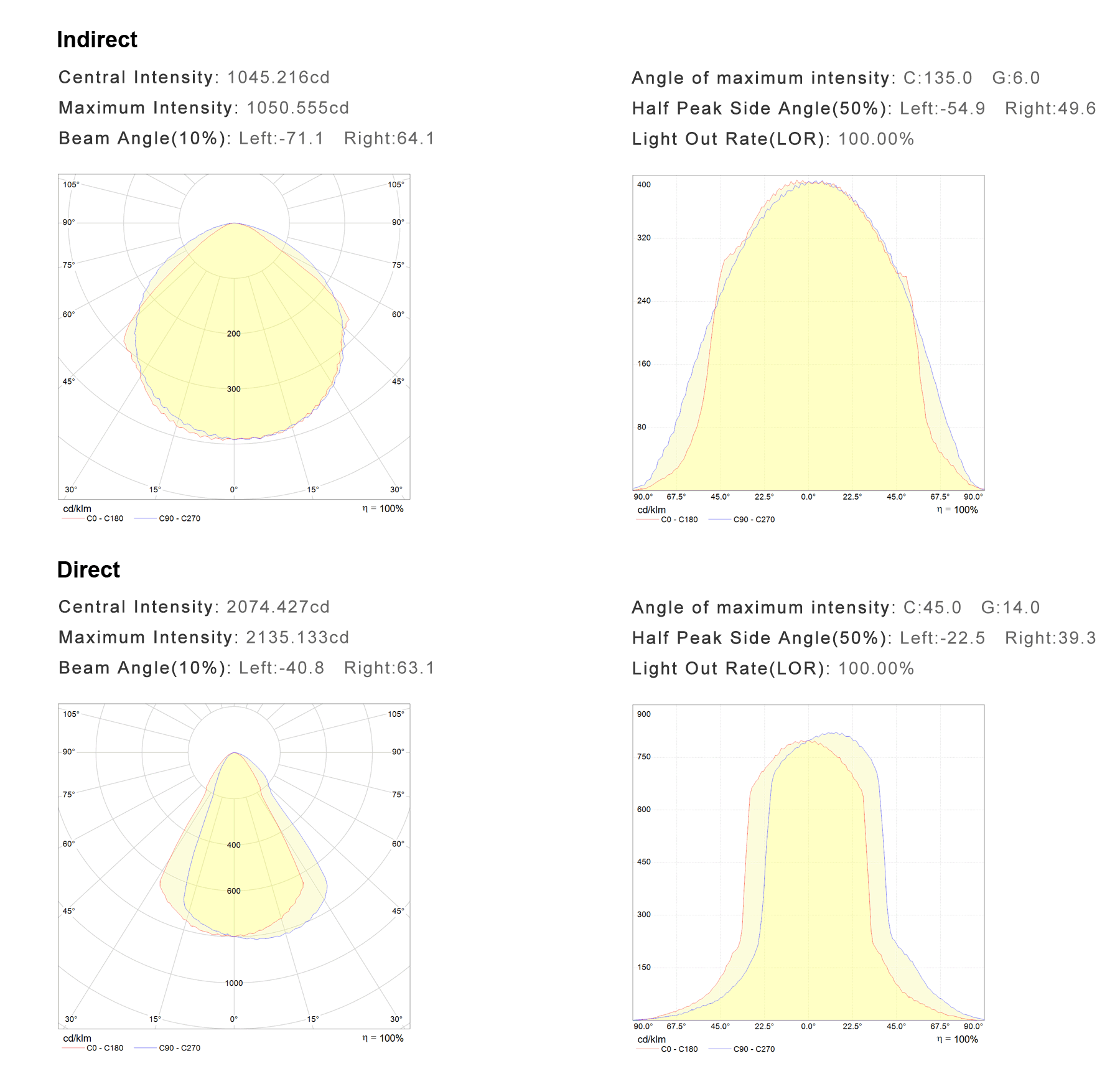

Light Distribution:
Double Sided Lighting
Specification
- Input Voltage: 220-240V
- Input Power: 45W
- Light Source: OSRAM 3030 1W
- Freqency Range: 50/60Hz
- Ra: Ra>80
- CCT: 3000/4000/6000K
- Power Factor: 0.97
- Lm/W: Indirect: 110 Direct: 104
- Color:
- Power Efficiency: 88.0%
- Luminous Flux: Indirect: 2600 Direct: 2500
- Lnsulation Class: CLASS Ⅱ
- Output Voltage: DC 27-54V
- UGR: < 18.0
- (G.W. / N.W.): 2.4/2.9kg
- Output Current: DC 1400mA±5%
- Beam Angle: 70°
- Package Dimensions: 136*25.5*9cm
- Lifespan: 30000H
Different Size
| Size |
Input Power |
Lm/W |
Beam Angle |
Luminous Flux |
Ra |
Different Power
| Size |
Input Power |
Luminous Flux |
